No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
37
|
Front pillar positioning notch (upper)
|
-
|
-
|
38
|
Front pillar positioning notch (lower)
|
-
|
-
|
39
|
Side roof rail positioning notch (front)
|
-
|
-
|
40
|
Side sill positioning notch (front)
|
-
|
-
|

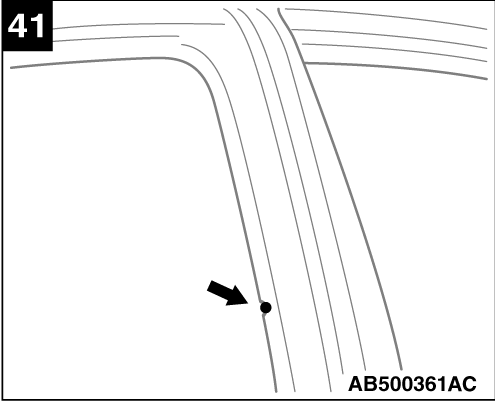

41
|
Centre pillar positioning notch (upper)
|
-
|
-
|
42
|
Centre pillar positioning notch (lower)
|
-
|
-
|

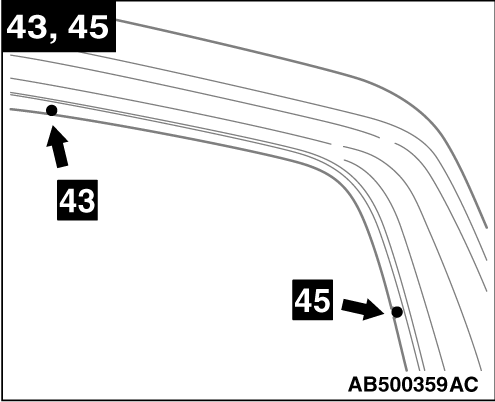

43
|
Side roof rail positioning notch (rear)
|
-
|
-
|
44
|
Side sill positioning notch (rear)
|
-
|
-
|
45
|
Rear pillar positioning notch (upper)
|
-
|
-
|
46
|
Rear pillar positioning notch (lower)
|
-
|
-
|

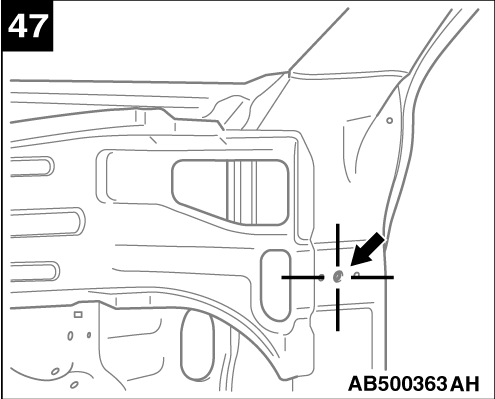

47
|
Centre of front door hinge mounting hole (upper)
|
Round
|
11
|

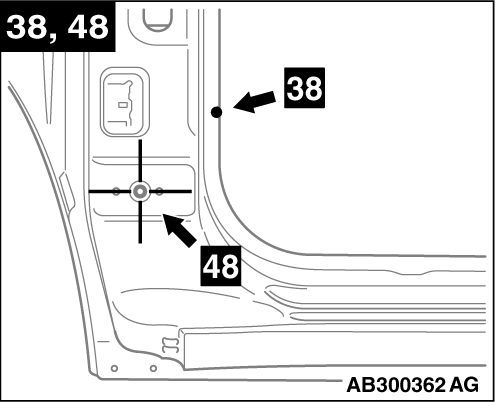

48
|
Centre of front door hinge mounting hole (lower)
|
Round
|
11
|
49
|

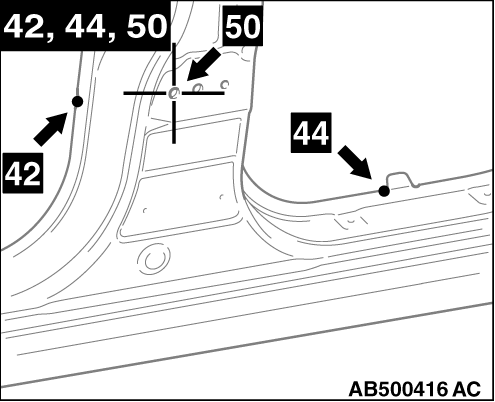

Centre of rear door positioning hole (upper)
|
Round
|
11
|
50
|
Centre of rear door hinge mounting hole (lower)
|
Round
|
12
|

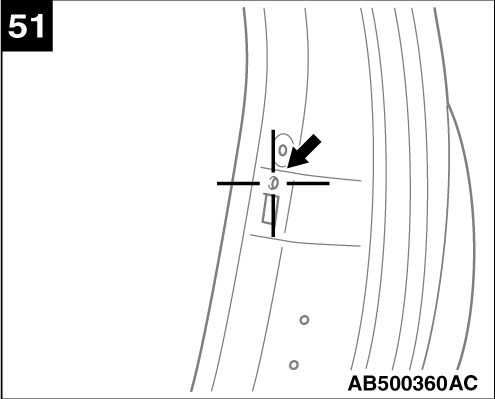

51
|
Centre of rear door switch mounting hole
|
Round
|
5
|
