REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Transmission oil draining and refilling (Refer to .)
  • Front bumper and radiator grille assembly removal and installation (Refer to GROUP 51 - Front Bumper and Radiator Grille Assembly .)

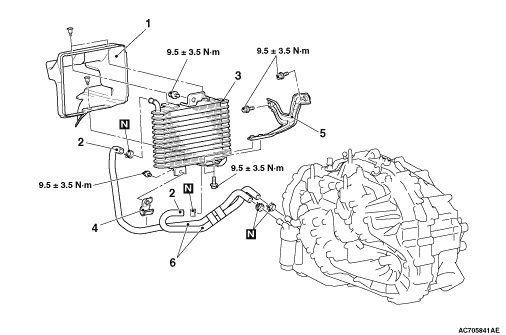

Removal steps (Cont.)


1.
 Oil cooler duct


2.
 Oil cooler hose assembly connection


3.
 Oil cooler assembly


4.
 Hose clamp


5.
 Oil cooler bracket


6.
 Oil cooler hose assembly
