REMOVAL AND INSTALLATION <6B3>



caution The part indicated * mark should be temporarily tightened and then should be fully tightened with the vehicle standing on the earth and the curb weight condition.
Pre-removal operation
  • Radiator Condenser Tank Removal (Refer to GROUP 14 - Radiator <6B3> ).
  • Power Steering Oil Pump Removal (Refer to GROUP 11C - Engine Assembly ).

Post-installation operation
  • Power Steering Oil Pump Installation (Refer to GROUP 11C - Engine Assembly ).
  • Radiator Condenser Tank Installation (Refer to GROUP 14 - Radiator <6B3> ).

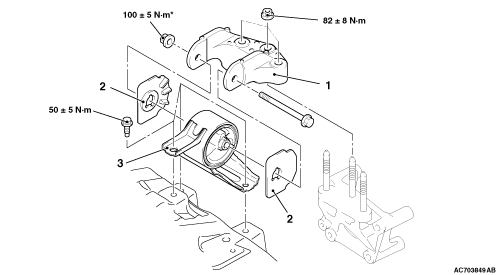

Removal steps
<<A>>

1.
Engine mounting bracket

>>A<<
2.
Engine mounting insulator stopper


3.
Engine mounting insulator

REMOVAL SERVICE POINT



<<A>> ENGINE MOUNTING BRACKET REMOVAL


1.
caution When supporting the engine and transmission assembly with a garage jack, be careful not to deform the engine oil pan.
Place a garage jack against the engine oil pan with a piece of wood in between to support the engine and transmission assembly.
2.Operate a garage jack so that the engine weight is not applied to the engine mounting insulator, and remove the engine mounting bracket.

INSTALLATION SERVICE POINT



>>A<< ENGINE MOUNTING INSULATOR STOPPER INSTALLATION



Install the engine mounting insulator stopper as shown in the figure.
