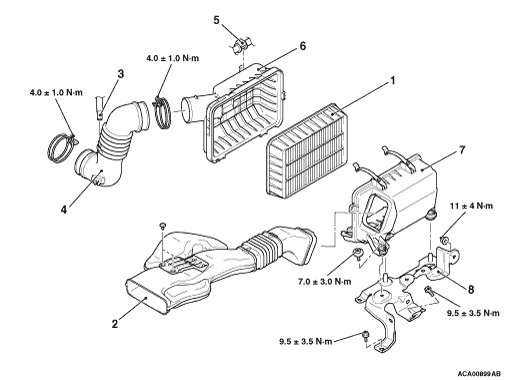

Removal steps
|
|
|
1.
|
Air cleaner element
|
|
|
·
|
Headlamp support upper panel cover (Refer to GROUP 51 - Front
Bumper Assembly  ).
|
|
|
2.
|
Air cleaner intake duct
|
|
|
3.
|
Breather hose connection
|
|
|
4.
|
Air cleaner to throttle body duct
|
|
|
5.
|
Vacuum hose connection
|
|
|
6.
|
Air cleaner cover
|
|
|
7.
|
Air cleaner body
|
|
|
·
|
Engine-ECU (Refer to GROUP 13D - Engine-ECU ).
|
|
|
8.
|
Air cleaner bracket
|
|
