REMOVAL AND INSTALLATION <4A9>

<Vehicles for Europe>

			Exhaust front pipe removal steps
		1.	Oxygen sensor (front) connector
<<A>>	>>B<<	2.	Oxygen sensor (front)
		3.	Exhaust front pipe
		4.	Exhaust pipe seal ring
		8.	Exhaust pipe gasket
		12.	Dash panel heat protector
			Exhaust centre pipe removal steps
		·	Footrest
		·	Floor console side cover (Refer to GROUP 52A - Front Floor Console Assembly ).
		·	Turn up the passenger side floor carpet <LH drive vehicles>
		·	Turn up the driver’s side floor carpet <RH drive vehicles>
		5.	Oxygen sensor (rear) connector
<<A>>	>>B<<	6.	Oxygen sensor (rear)
		7.	Exhaust centre pipe
		8.	Exhaust pipe gasket
		10.	Exhaust pipe gasket
		11.	Damper
		12.	Dash panel heat protector
<<B>>	>>A<<	13.	Rivet
		14.	Front floor heat protector
<<B>>	>>A<<	15.	Rivet
		16.	Centre floor heat protector
			Exhaust main muffler removal steps
		9.	Exhaust main muffler
		10.	Exhaust pipe gasket
	>>C<<	17.	Exhaust tail pipe diffuser <some models>
		18.	Rear floor heat protector

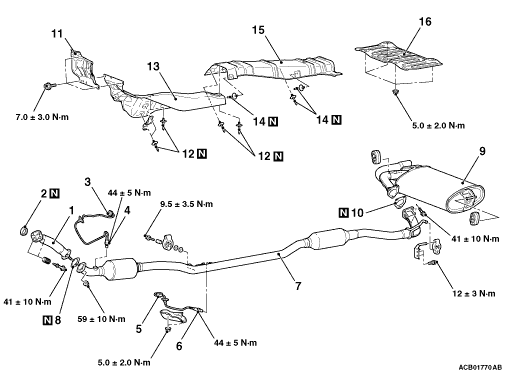

<Vehicles for Russia>

			Exhaust front pipe removal steps
		1.	Exhaust front pipe
		2.	Exhaust pipe seal ring
		8.	Exhaust pipe gasket
		11.	Dash panel heat protector
			Exhaust centre pipe removal steps
		·	Footrest
		·	Floor console side cover (Refer to GROUP 52A - Front Floor Console Assembly ).
		·	Turn up the passenger side floor carpet
		3.	Oxygen sensor (front) connector
<<A>>	>>B<<	4.	Oxygen sensor (front)
		5.	Oxygen sensor (rear) connector
<<A>>	>>B<<	6.	Oxygen sensor (rear)
		7.	Exhaust centre pipe
		8.	Exhaust pipe gasket
		10.	Exhaust pipe gasket
		11.	Dash panel heat protector
<<B>>	>>A<<	12.	Rivet
		13.	Front floor heat protector
<<B>>	>>A<<	14.	Rivet
		15.	Centre floor heat protector
			Exhaust main muffler removal steps
		9.	Exhaust main muffler
		10.	Exhaust pipe gasket
		16.	Rear floor heat protector

REMOVAL SERVICE POINTS

For removal service points, follow the same service procedures as 10 MY OUTLANDER <4B1>.

For service points other than below, follow the same service procedures as 10 MY OUTLANDER <4B1>.

When the part is reused, make sure that there is no excessive play after installation and that the part is securely fixed.
