REMOVAL AND INSTALLATION


caution When the EGR cooler is replaced, use the M.U.T.-III to initialise the learning value (Refer to GROUP 00 - Precautions Before Service, Initialisation Procedure for Learning Value in Common Rail Engine ).
Pre-removal Operation
  • EGR Valve Assembly Removal (Refer to ).
  • Starter Assembly Removal (Refer to GROUP 16 - Starting System, Starter Assembly ).
  • Engine Oil Draining (Refer to GROUP 12 - On-vehicle Service, Engine Oil Replacement ).

 Post-installation Operation
  • Starter Assembly Installation (Refer to GROUP 16 - Starting System, Starter Assembly ).
  • EGR Valve Assembly Installation (Refer to ).
  • Engine Oil Refilling (Refer to GROUP 12 - On-vehicle Service, Engine Oil Replacement ).

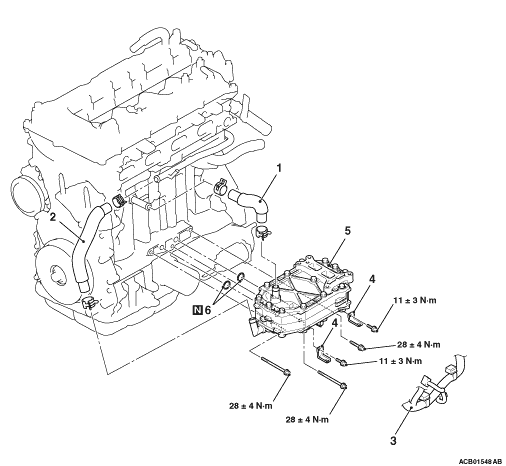

Removal steps


1.
 Cooling water line hose D


2.
 Cooling water line hose C


3.
 Battery wiring harness connection


4.
 Harness bracket


5.
 EGR cooler


6.
 O-ring
