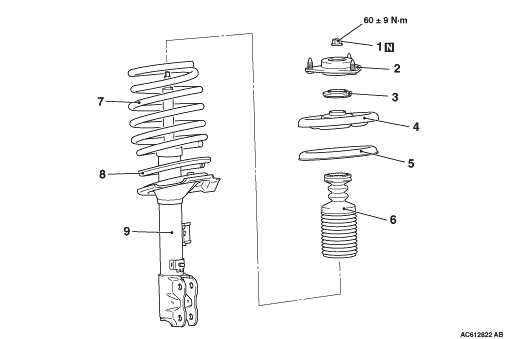

DISASSEMBLY AND REASSEMBLY



Disassembly steps
<<A>>
 >>C<<
 1.
 Strut nut (Self-locking nut)


2.
 Strut insulator assembly

>>B<<
 3.
 Strut bearing


4.
 Upper spring seat


5.
 Upper spring pad


6.
 Bump rubber

>>A<<
 7.
 Coil spring


8.
 Spring tube
<<B>>
9.
 Strut

DISASSEMBLY SERVICE POINTS
For disassembly service points, follow the same service procedures as 10 MY OUTLANDER.

REASSEMBLY SERVICE POINTS
For assembly service points, follow the same service procedures as 10 MY OUTLANDER.
