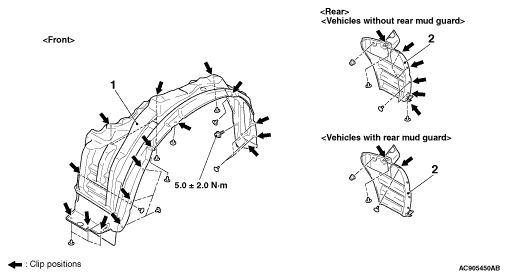

REMOVAL AND INSTALLATION



Front wheelhouse splash shield removal


1.
 Front wheelhouse splash shield



Rear wheelhouse splash shield removal steps


·
 Rear mud guard <Vehicles with rear mud guard> (Refer to GROUP 51 - Mud guard .)


2.
 Rear wheelhouse splash shield
