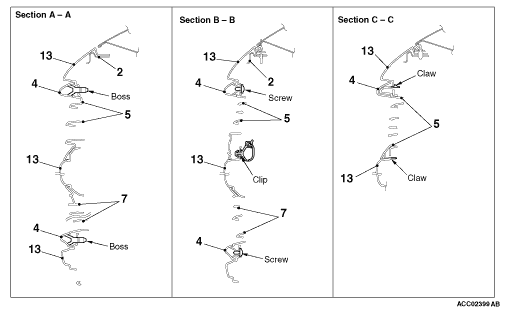

DISASSEMBLY AND REASSEMBLY

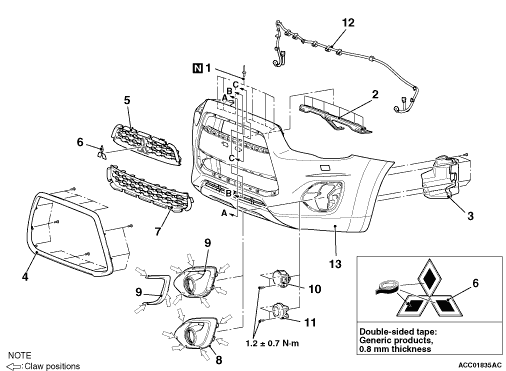

Disassembly steps
<<A>>
 >>A<<
 1.
 Rivet


2.
 Front bumper reinforcement B


3.
 Oil cooler duct <Vehicles with oil cooler>


4.
 Front bumper centre garnish


5.
 Radiator grille


6.
 Front-three diamond mark


7.
 Front bumper grille


8.
 Front bumper garnish A <Material colour>


9.
 Front bumper garnish B <Chromium plating>


10.
 Front fog lamp assembly <Vehicles with front fog lamp>


11.
 Front fog lamp cover <Vehicles without front fog lamp>


12.
 Front bumper harness


13.
 Front bumper face

DISASSEMBLY SERVICE POINT

<<A>> RIVETS REMOVAL

Use a drill (Φ 4.0 mm) to make a hole in the rivet to break it, and remove the rivet.

REASSEMBLY SERVICE POINT

>>A<< RIVETS INSTALLATION

Use a rivet tool shown as in the illustration to connect the parts with rivets by the following procedures:
1.Insert the rivet into a corresponding location.
2.Set the rivet tool at a portion A of rivet.
3.While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4.Thin part of portion A of the rivet will be cut off and the parts is fixed in position.
