REMOVAL AND INSTALLATION

---

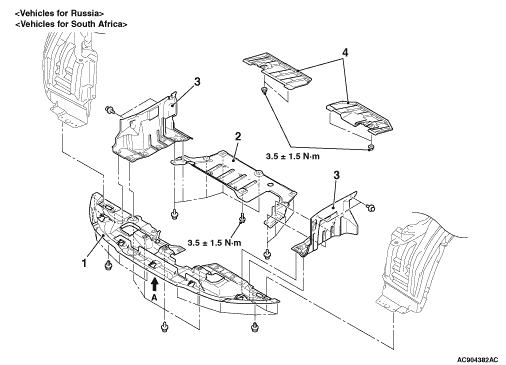

Removal steps 1. Engine room under cover front A 2. Engine room under cover front B 3. Engine room side cover 4. Front floor under cover

---

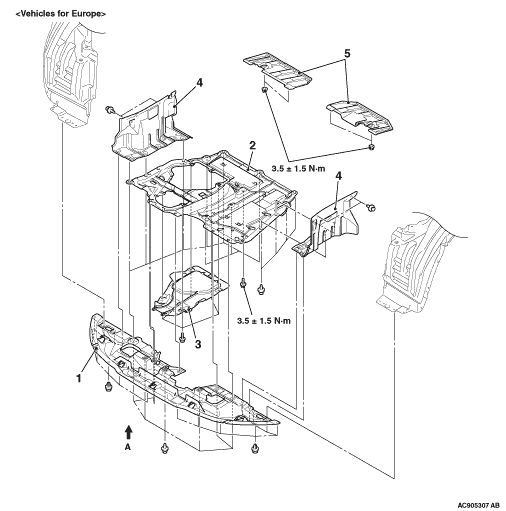

Removal steps 1. Engine room under cover front A 2. Engine room under cover front B 3. Engine room side cover extension 4. Engine room side cover 5. Front floor under cover
