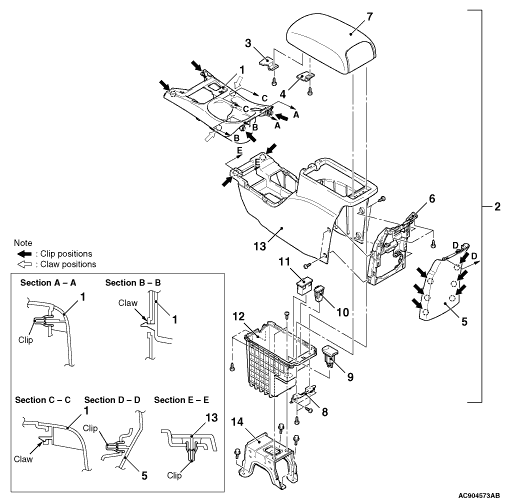

REMOVAL AND INSTALLATION



Removal steps


·.
 Shift lever panel assembly (Refer to ).


1.
 Floor console panel


2.
 Rear floor console assembly


3.
 Floor console lid lock lever


4.
 Floor console lid lock lever


5.
 Floor rear console accessory panel


6.
 Console rear frame


7.
 Floor console lid


8.
 Console rear bracket
<<A>>
9.
 Accessory socket (Refer to GROUP 54A - Accessory socket and cigarette lighter ).
.
10.
 USB adapter (Refer to GROUP 54A - USB box ).


11.
 Audio adapter (Refer to GROUP 54A - Radio and CD player <Vehicles with Radio and CD player> or GROUP 54A - Mitsubishi multi communication system (MMCS) <Vehicles with Multivision display>).


12.
 Floor console box inner


13.
 Rear console


14.
 Floor console bracket rear

REMOVAL SERVICE POINT

<<A>> WIRING HARNESS CONNECTOR DISCONNECTION

Disconnect the following wiring harness connectors:
Connector number
 Connector name
C-120 (2)
 Accessory socket (rear floor console) connector
