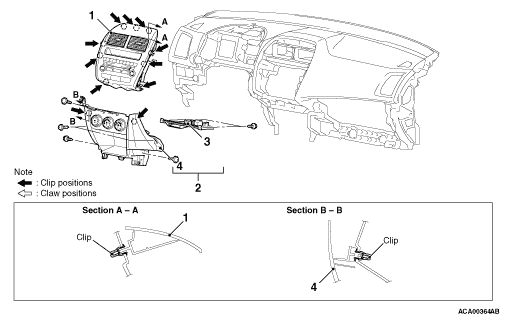

Removal steps
|
|
|
1.
|
Instrument panel assembly centre
|
|
|
·.
|
Floor console (Refer to  ).
|
|
|
·.
|
Instrument panel under cover (Refer to ).
|
|
|
2.
|
Centre lower panel assembly
|
|
|
·.
|
Hands free ECU (Refer to GROUP 54A - Hands free ECU ).
|
|
|
3.
|
Instrument panel cover lower
|
|
|
4.
|
Instrument panel lower centre
|
