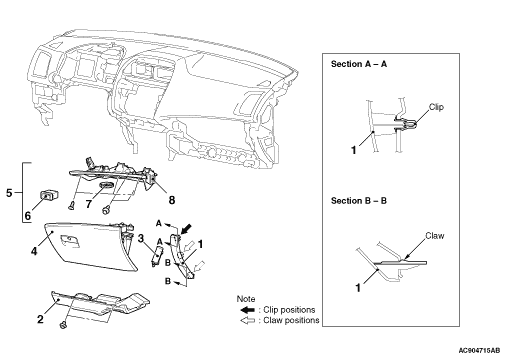

Removal steps
|
|
|
1.
|
Glove box side cover
|
|
|
2.
|
Instrument panel under cover
|
|
|
3.
|
Glove box damper
|
|
|
4.
|
Glove box
|
|
|
5.
|
Glove box cover assembly
|
|
|
6.
|
key box
|
|
|
7.
|
Instrument panel air outlet knob
|
|
|
·.
|
Passenger’s air bag cut off switch (Refer to GROUP 52B - Passenger’s air bag cut off switch  ).
|
|
|
8.
|
Glove box cover
|
|
