DISASSEMBLY AND REASSEMBLY

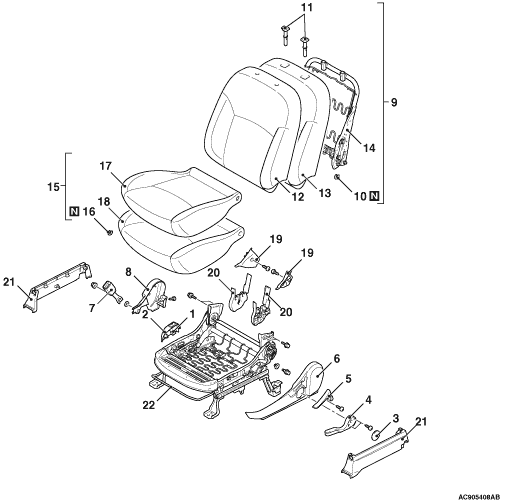

<VEHICLES WITH STANDARD SEAT>

Disassembly steps 1. Seat heater switch 2. Front seat heater switch cover <<A>> 3. Height adjuster lever cap <Vehicles with height adjustment> 4. Height adjuster lever <Vehicles with height adjustment> 5. Reclining adjuster lever 6. Side shield cover 7. Inner seat belt 8. Hinge cover 9. Front seatback assembly 10. Hog ring <<B>> 11. Headrestraint guide 12. Front seatback cover 13. Front seatback pad 14. Front seatback frame 15. Front seat cushion assembly 16. Hog ring 17. Front seat cushion cover 18. Front seat cushion pad 19. Side shield cover inner 20. Reclining adjuster cover 21. Front seat slide adjuster side cover 22. Front seat cushion frame

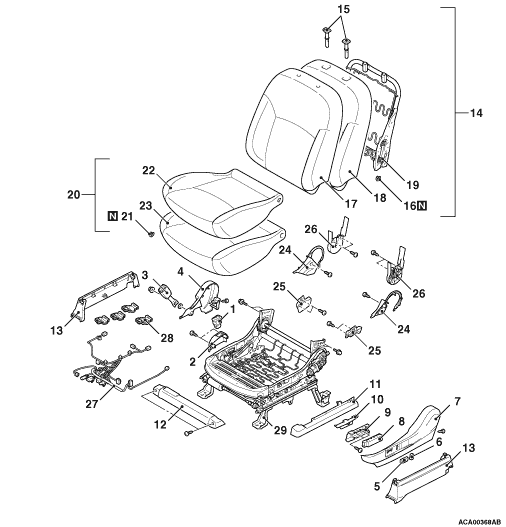

<VEHICLES WITH POWER SEAT>

Disassembly steps 1. Seat heater switch 2. Front seat heater switch cover 3. Inner seat belt 4. Front seat hinge cover 5. Front seat slide adjuster knob 6. Front seat reclining adjuster knob 7. Front seat side shield cover 8. Front power seat switch 9. Front power seat switch garnish 10. Front seat hook 11. Front seat slide adjuster side cover 12. Front power seat motor cover 13. Front seat slide adjuster side cover 14. Front sear back assembly <<B>> 15. Headrestraint guide 16. Hog ring 17. Front seatback cover 18. Front seatback pad 19. Front seatback frame 20. Front seat cushion assembly 21. Hog ring 22. Front seat cushion cover 23. Front seat cushion pad 24. Front seat reclining adjuster inner cover 25. Front seat side shield cover inner 26. Front seat reclining adjuster cover 27. Front power seat harness 28. Front seat hook 29. Front seat cushion frame

Use special tool MB990784 as shown to remove the height adjuster lever cap.

Peel of the front seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
