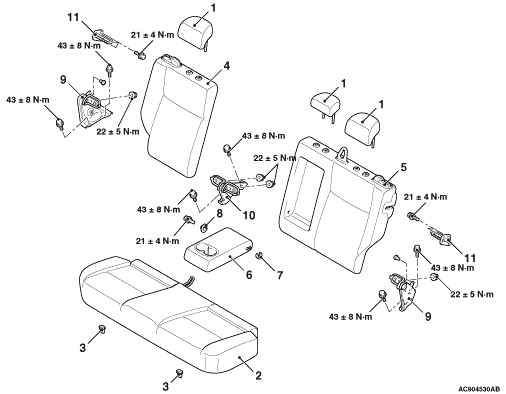

REMOVAL AND INSTALLATION



Removal steps


1.
 Rear seat headrestraint

>>A<<
 2.
 Rear seat cushion assembly


3.
 Rear seat stopper


4.
 Rear seatback assembly (RH)


5.
 Rear seatback assembly (LH)


6.
 Rear seat armrest


7.
 Rear seat bushing


8.
 Rear seat side hinge


9.
 Rear seat hinge bracket centre


10.
 Rear seat striker

INSTALLATION SERVICE POINTS

>>A<< REAR SEAT CUSHION ASSEMBLY INSTALLATION

Fit the rear seat cushion assembly into the rear seat stopper securely.
