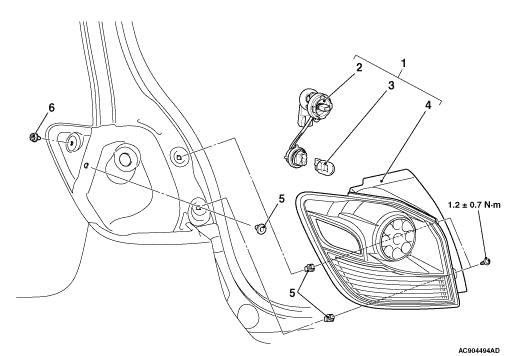

REAR COMBINATION LAMP REMOVAL AND INSTALLATION



Removal steps


1.
 Rear combination lamp assembly


2.
 Tail lamp socket


3.
 Bulb


4.
 Rear combination lamp unit


5.
 Tail lamp grommet


6.
 Tail lamp clip
