REMOVAL AND INSTALLATION


FRONT DOOR SPEAKER


Pre-removal operation
  • Removal of front door trim (Refer to GROUP 52A - Door trim )

 Post-installation operation
  • Installation of front door trim (Refer to GROUP 52A - Door trim )
  • Learning of the power window fully closed position (Refer to GROUP 42A - Door, On-vehicle service .)




Removal Step
<<A>>
1.
 Front door speaker

REAR DOOR SPEAKER


Pre-removal operation
  • Removal of rear door trim (Refer to GROUP 52A - Door trim )

 Post-installation operation
  • Installation of rear door trim (Refer to GROUP 52A - Door trim )




Removal Step
<<A>>
1.
 Rear door speaker

TWEETER

Removal Steps


1.
 Front door sash trim assembly


2.
 Tweeter bracket and Tweeter


3.
 Tweeter bracket


4.
 Tweeter


5.
 Front door sash trim

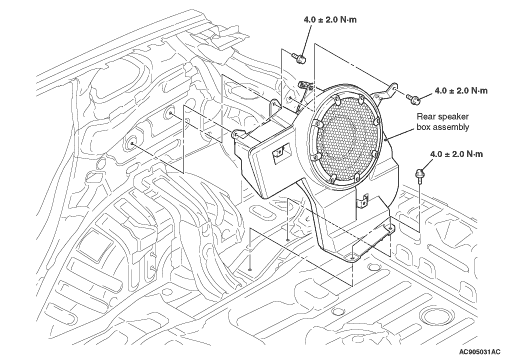

SUBWOOFER


Pre-removal operationRemoval of quarter trim (Refer to GROUP 52A - Quarter Trim )
 Post-installation operationInstallation of quarter trim (Refer to GROUP 52A - Quarter Trim )


REMOVAL SERVICE POINT

<<A>> REMOVAL OF FRONT DOOR SPEAKER AND REAR DOOR SPEAKER

Disconnect the connector, and remove by twisting as shown in the figure.
