REMOVAL AND INSTALLATION


caution When the ETACS-ECU is replaced, chassis number writing and coding must be performed. When diagnosis code No.B1761 "Chassis No. not programmed" or No.B222C "Coding not completed" is set to the ETACS-ECU, perform chassis number writing and coding. Refer to the "M.U.T.-III operation manual" and perform coding.
Pre-removal and Post-installation Operation
  • Cowl side trim removal and installation (Refer to GROUP 52A - Trims .)
  • Instrument panel lower removal and installation (Refer to GROUP 52A - Instrument Lower Panel .) <LHD>
  • Instrument panel under cover, glove box, glove box cover removal and installation (Refer to GROUP 52A - Glove Box .) <RHD>

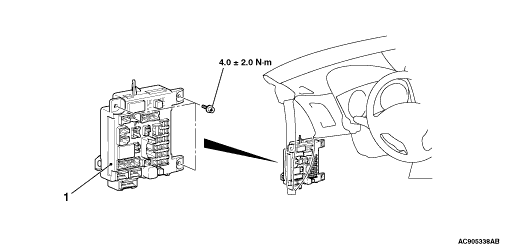

Removal Step


1.
 ETACS-ECU
