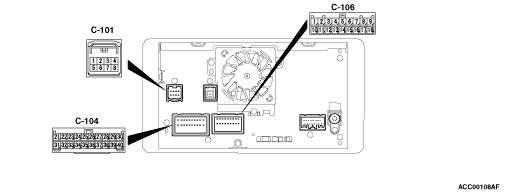

MAIN UNIT TERMINAL VOLTAGE


MULTIVISION DISPLAY




C-101


Terminal No.
 Check item
 Check condition
 Terminal voltage
61
 VCC
 Sift lever <M/T> or selector lever <CVT>: R position
Ignition switch: ON position
 5.8 - 7.0V (DC)
62
 CAMERA DETECT
 Sift lever <M/T> or selector lever <CVT>: R position
Ignition switch: ON position
 0 - 5V (DC)
63
 PS-R
 Sift lever <M/T> or selector lever <CVT>: R position
Ignition switch: ON position
 System voltage (DC)
64
 BATTERY (+)
 Always
 System voltage (DC)
65
 GND (CAMERA)
 Always
 1 V or less
66
 CAMERA SIGNAL
 Sift lever <M/T> or selector lever <CVT>: R position
Ignition switch: ON position
 1Vp-p (AC)
67
 SHIELD (CAMERA)
 Always
 1 V or less
68
 GND (MULTIVISION DISPLAY)
 Always
 1 V or less

C-104


Terminal No.
 Check item
 Check condition
 Terminal voltage
21
 ACCESSORY (+)
 Ignition switch: ACC position
 System voltage (DC)
22
 REMOCON
 Ignition switch: ACC position
 3.3V (DC)
23, 24
 -
 -
 -
25
 SPEAKER RR (+)
 When the sound is output
 0 - System voltage (AC)
26
 SPEAKER FR (+)
 When the sound is output
 0 - System voltage (AC)
27
 SPEAKER RL (+)
 When the sound is output
 0 - System voltage (AC)
28
 SPEAKER FL (+)
 When the sound is output
 0 - System voltage (AC)
29
 ILLUMINATION (+)
 Tail lamp switch: ON
 System voltage (DC)
30
 BATTERY (+)
 Always
 System voltage (DC)
31
 VEHICLE SPEED PULSE
 Ignition switch: ON
 0 - System voltage (pulse)
32
 REMOCON GND
 Always
 1 V or less
33
 -
 -
 -
34
 ANTENNA +B
 Ignition switch: ACC position
 System voltage (DC)
35
 SPEAKER RR (-)
 When the sound is output
 0 - System voltage (AC)
36
 SPEAKER FR (-)
 When the sound is output
 0 - System voltage (AC)
37
 SPEAKER RL (-)
 When the sound is output
 0 - System voltage (AC)
38
 SPEAKER FL (-)
 When the sound is output
 0 - System voltage (AC)
39
 ILLUMINATION (-)
 Always
 1 V or less
40
 GND
 Always
 1 V or less

C-106


Terminal No.
 Check item
 Check condition
 Terminal voltage
1
 -
 -
 -
2
 -
 -
 -
3
 HFM/USB S-INPUT RIGHT
 When the hands free-ECU operation
 1.2 Vrms (AC)
4
 HFM/USB S-INPUT LEFT
 When the hands free-ECU operation
 1.2 Vrms (AC)
5
 -
 -
 -
6
 IE-BUS INPUT RIGHT (+)
 -
 -
7
 IE-BUS INPUT LEFT (+)
 -
 -
8
 IE-BUS POWER ON
 Ignition switch: ACC position
 1 V or less
9
 IE-BUS (+)
 Ignition switch: ACC position
 More than 120mV
10
 AUX/RSES INPUT GND
 Always
 1 V or less
11
 -
 -
 -
12
 HFM/USB INPUT GND
 When the hands free-ECU operation
 1.2 Vrms (AC)
13 - 14
 -
 -
 -
15
 IE-BUS INPUT RIGHT (-)
 -
 -
16
 IE-BUS INPUT LEFT (-)
 -
 -
17
 IE-BUS SHIELD GND
 Always
 1 V or less
18
 IE-BUS (-)
 Ignition switch: ACC position
 More than 120mV
