RELAY CHECK

---

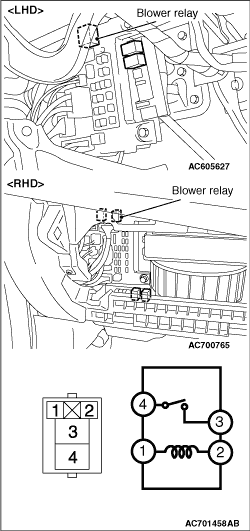

BLOWER RELAY CONTINUITY CHECK

Battery voltage Checking terminal Normal condition Not applied 3 - 4 No continuity Connect terminal 1 to the positive battery terminal Connect terminal 2 to the negative battery terminal Continuity exists (2 Ω or less)

---

A/C COMPRESSOR RELAY CONTINUITY CHECK

Battery voltage Checking terminal Normal condition Not applied 3 - 4 No continuity Connect terminal 2 to the positive battery terminal Connect terminal 1 to the negative battery terminal Continuity exists (2 Ω or less)

---

PTC HEATER RELAY 1 CONTINUITY CHECK

Battery voltage Checking terminal Normal condition Not applied 2 - 4 No continuity Connect terminal 3 to the positive battery terminal Connect terminal 1 to the negative battery terminal Continuity exists (2 Ω or less)

---

PTC HEATER RELAY 2 CONTINUITY CHECK

Battery voltage Checking terminal Normal condition Not applied 2 - 4 No continuity Connect terminal 3 to the positive battery terminal Connect terminal 1 to the negative battery terminal Continuity exists (2 Ω or less)

---

PTC HEATER RELAY 3 CONTINUITY CHECK

Battery voltage Checking terminal Normal condition Not applied 3 - 4 No continuity Connect terminal 1 to the positive battery terminal Connect terminal 2 to the negative battery terminal Continuity exists (2 Ω or less)
