No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
45
|
Front pillar positioning notch
|
-
|
-
|
46
|
Front pillar positioning notch
|
-
|
-
|
47
|
Roof side rail positioning notch
|
-
|
-
|
48
|
Side sill positioning notch
|
-
|
-
|
49
|
Centre pillar positioning notch
|
-
|
-
|
50
|
Centre pillar positioning notch
|
-
|
-
|
51
|
Roof side rail positioning notch
|
-
|
-
|
52
|
Side sill positioning notch
|
-
|
-
|
53
|
Quarter panel positioning notch
|
-
|
-
|
54
|
Quarter panel positioning notch
|
-
|
-
|
68
|
Centre of backbone reinforcement positioning hole (Body centre point)
|
Round
|
25
|
69
|
Body centre point of rear floor extension (Body centre point)
|
-
|
-
|
70
|

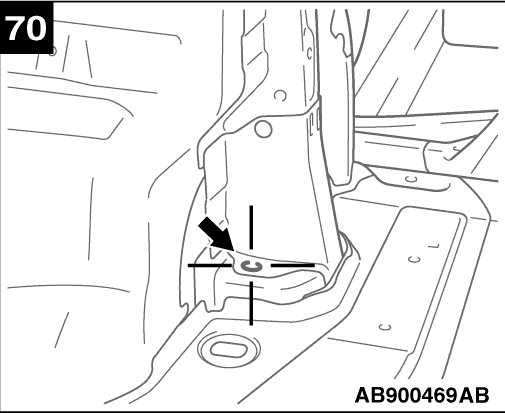

Centre of rear shock absorber mounting hole
|
Round
|
14
|
71
|
Centre of rear end trim mounting hole
|
Round
|
8.5
|
No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
72
|
Centre of front deck crossmember mounting hole
|
Round
|
13
|
73
|
Centre of front deck crossmember mounting hole
|
Round
|
13
|
74
|
Centre of front deck crossmember mounting hole
|
Round
|
9
|
75
|
Centre of front deck crossmember mounting hole
|
Round
|
9
|
76
|
Centre of front deck crossmember mounting hole
|
Round
|
9
|
77
|
Centre of front deck crossmember mounting hole
|
Round
|
9
|
78
|
Centre of front deck crossmember mounting hole
|
Round
|
13
|
79
|
Centre of front deck crossmember mounting hole
|
Round
|
13
|
