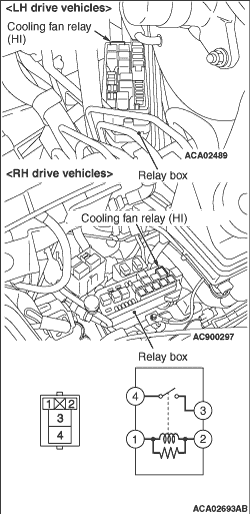

Battery voltage
|
Terminal to be checked
|
Normal conditions
|
No current supply
|
4 - 1
|
No continuity
|
With current supply [terminal 3 (+), terminal 2 (-)]
|
Continuity (2 Ω or less)
|
|
|
|
|
|

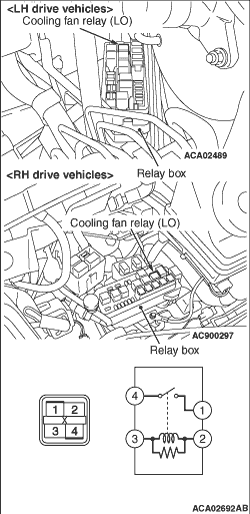

Battery voltage
|
Terminal to be checked
|
Normal conditions
|
No current supply
|
4 - 3
|
No continuity
|
With current supply [terminal 1 (+), terminal 2 (-)]
|
Continuity (2 Ω or less)
|
|
|
