Start the electric motor unit, and measure the auxiliary battery voltage.
|
|
|
Q.
Is the voltage 10 V or more?
|
|
|
Check the auxiliary battery and on board charger/on board transformer,
and repair if necessary. (Refer to GROUP 54A - Auxiliary Battery - Battery
Test as well as GROUP 54D - On Board Charger/On
Board Transformer Removal and Installation .)
|
|
|
|
|
|

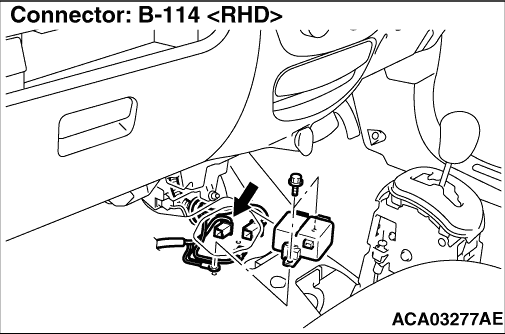

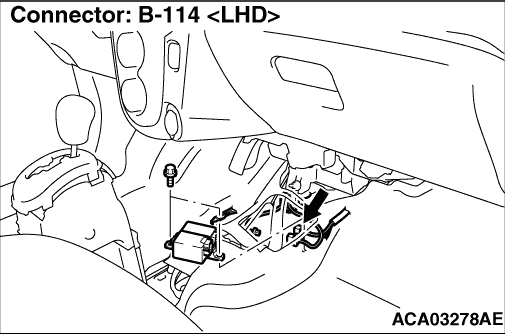

(1)Disconnect the connector and measure at the wiring harness side.
|
|
|
(2)Measure the voltage between B-114 EPS-ECU connector terminal No. 2 and the body
earth. OK: Battery voltage
|
|
|
Q.
Is the check result normal?
|
|
|
Check the wiring harness and connector between the fusible link No. 23 and the
EPS-ECU, and repair if necessary.
|
|
|
|
|
|
(1)Disconnect the connector and measure at the wiring harness side.
|
|
|
(2)Measure the resistance between B-114 EPS-ECU connector terminal No. 1 and the body
earth. OK: Continuity exists (2 Ω or less)
|
|
|
Q.
Is the check result normal?
|
|
|
Check the wiring harness and connector between the body earth and the EPS-ECU,
and repair if necessary.
|
|
|
|
|
|
Recheck if the diagnosis code is set.
|
|
|
(1)Turn the electric motor switch to the "LOCK" (OFF) → "ON" position.
|
|
|
(2)Check if the diagnosis code No. C1861 is set as a current trouble.
|
|
|
Q.
Is diagnosis code C1861 set?
|
|
|
Intermittent malfunction. (Refer to GROUP 00 - How to Cope with Intermittent
Malfunction .)
|
|
|
|
