REMOVAL AND INSTALLATION







Removal steps


1.
Front door opening trim


2.
Front pillar trim


3.
Front pillar trim lower assembly


4.
Delta duct


5.
Front pillar trim lower


6.
Front scuff plate


7.
Cowl side trim


8.
Rear scuff plate


·
Front seat belt (Refer to .)


9.
Centre pillar trim lower


10.
Rear door opening trim


11.
Centre pillar trim upper


12.
Rear end trim


·
Rear seat belt (Refer to .)


13.
Jack lid (RH)


14.
Quarter trim lower


15.
Quarter trim upper

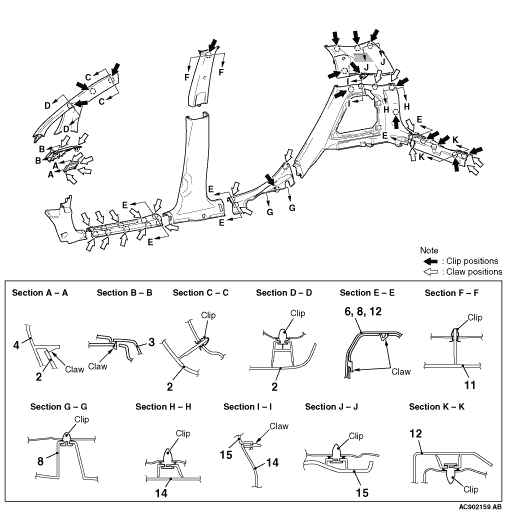

CLIP AND CLAW POSITIONS




note Each number in the illustration indicates a part number.
