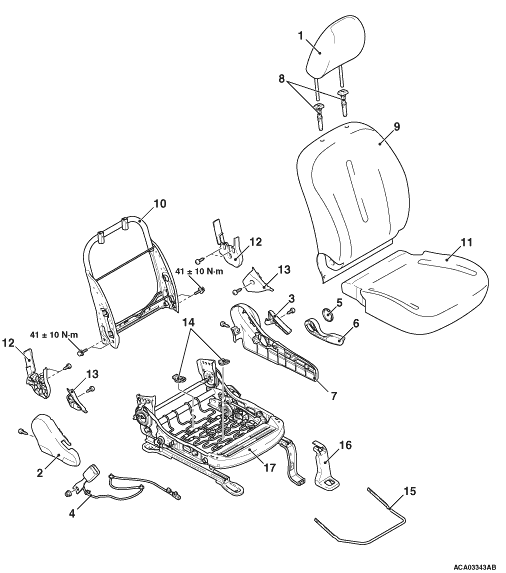

DISASSEMBLY AND REASSEMBLY



Disassembly steps


1.
 Front seat headrest


2.
 Front seat hinge cover


3.
 Front seat reclining adjuster lever


4.
 Front seat belt inner


5.
 Front seat height adjuster lever cap <driver’s side>


6.
 Front seat height adjuster lever <driver’s side>


7.
 Front seat side slide cover
<<A>>
8.
 Front seat headrest guide


9.
 Front seat back cover and pad assembly


10.
 Front seat back frame


11.
 Front seat cushion cover and pad assembly


12.
 Front seat reclining adjuster cover


13.
 Front seat side shield cover inner


14.
 Front seat hook


15.
 Front seat slide adjuster lever


16.
 Front seat anchor cover


17.
 Front seat slide adjuster

DISASSEMBLY SERVICE POINTS

<<A>> FRONT SEAT HEADRESTRAINT GUIDE REMOVAL

Peel of the front seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
