Code No. B1113 Electric water heater outlet water temperature sensor LO










DIAGNOSIS CODE SET CONDITIONS



PROBABLE CAUSES



  • Malfunction of heater
  • Damaged harness wires and connectors
  • Malfunction of A/C control unit

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list
Check that the following service data display contents are normal.

  • Item 11: Electric water heater outlet water temperature sensor

Q. Is the check result normal?
Intermittent malfunction. Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points, - How to Cope with Intermittent Malfunctions .)
Go to Step 2.

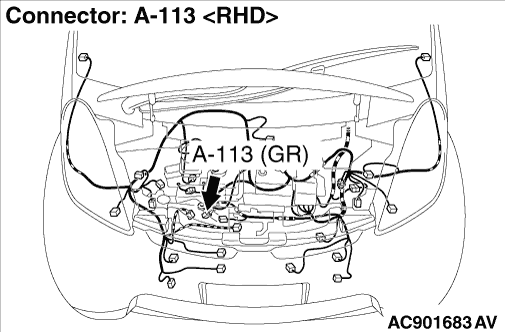

STEP 2. Connector check: A-113 heater connector

Q. Is the check result normal?
Go to Step 3.
Repair the damaged connector.

STEP 3. Check the heater (outlet water temperature sensor).
Refer to .

Q. Is the check result normal?
Go to Step 4.
Replace the heater.

STEP 4. Connector check: C-101 A/C control unit connector

Q. Is the check result normal?
Go to Step 5.
Repair the damaged connector.

STEP 5. Check the wiring harness between C-101 A/C control unit connector terminal No. 18, 19 and A-110 heater connector terminal No. 8, 6.

  • Check the input line for open circuit.
note Before checking the wiring harness, check the intermediate connector B-01 and repair it if necessary.

Q. Is the check result normal?
Go to Step 6.
Repair the wiring harness.

STEP 6. Check whether the diagnosis code is reset.

Q. Is the diagnosis code set?
Replace the heater.
Intermittent malfunction. Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points, - How to Cope with Intermittent Malfunctions .)
