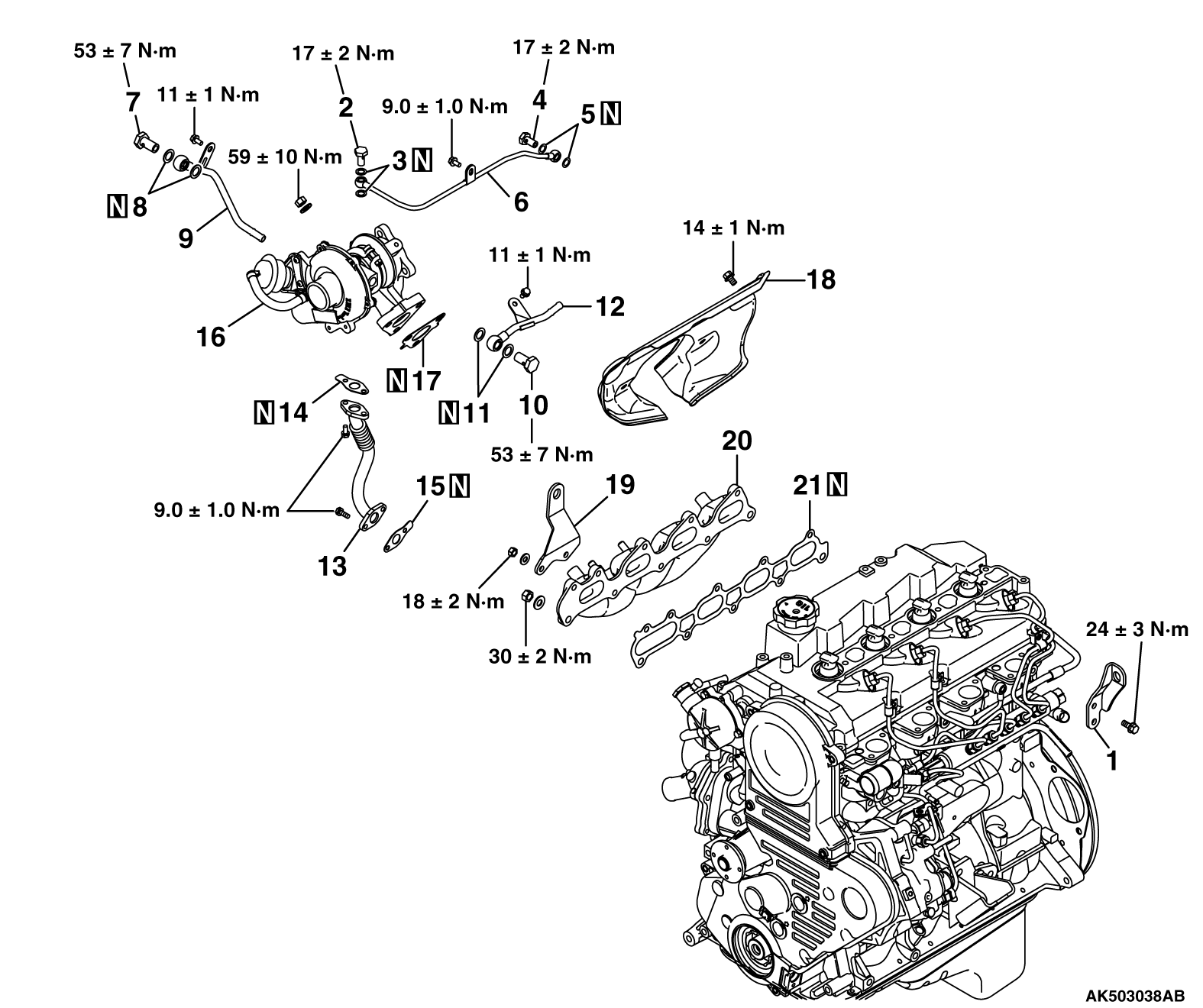

REMOVAL AND INSTALLATION



Removal steps


1.
 Engine hanger


2.
 Eyebolt (Oil pipe)


3.
 Gasket


4.
 Eyebolt (Oil pipe)


5.
 Gasket


6.
 Oil pipe


7.
 Eyebolt (Water pipe)


8.
 Gasket


9.
 Water pipe "C"


10.
 Eyebolt (Water pipe)


11.
 Gasket


12.
 Water pipe "B"


13.
 Oil return pipe


14.
 Oil return pipe gasket

>>B<<
 15.
 Oil return pipe gasket


16.
 Turbocharger

>>A<<
 17.
 Turbocharger gasket


18.
 Exhaust manifold heat protector


19.
 Engine hanger


20.
 Exhaust manifold


21.
 Exhaust manifold gasket

INSTALLATION SERVICE POINTS

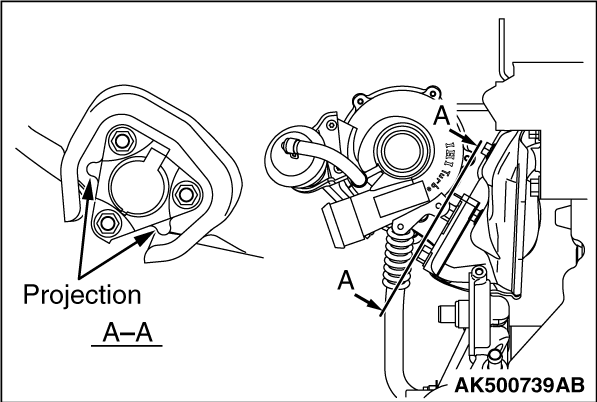

>>A<< TURBOCHARGER GASKET INSTALLATION

Position the projection as shown in the illustration.

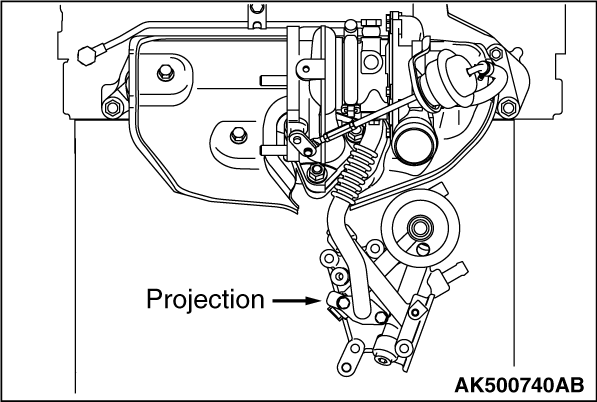

>>B<< OIL RETURN PIPE GASKET INSTALLATION

Position the projection as shown in the illustration.
