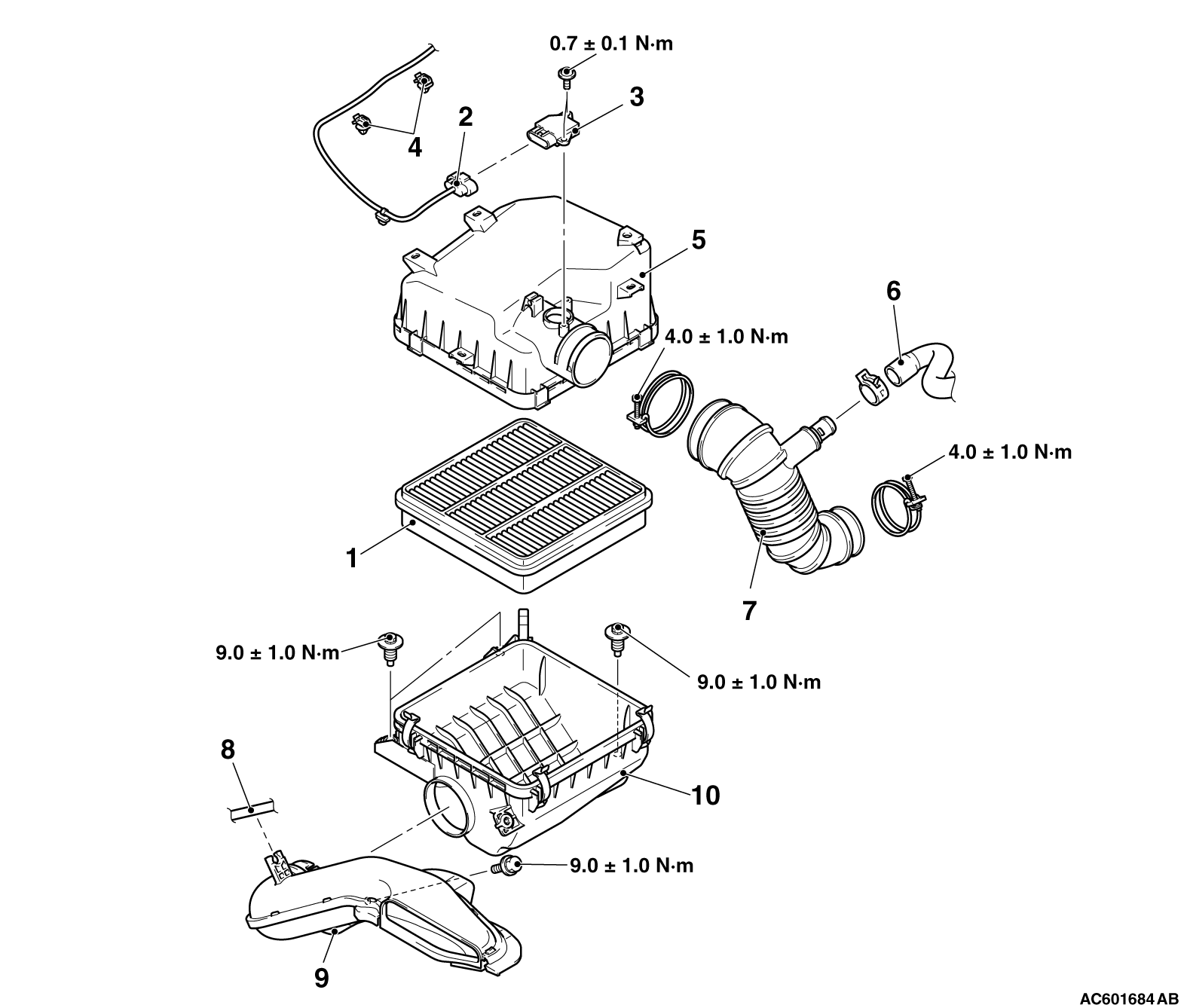

Removal steps
|
|
|
1.
|
Air cleaner element
|
|
|
2.
|
Intake air flow sensor connector
|
|
|
3.
|
Intake air flow sensor
|
|
|
4.
|
Harness clamp
|
|
|
5.
|
Air cleaner cover
|
|
|
6.
|
Breather hose connection
|
|
|
7.
|
Air intake hose
|
|
|
8.
|
Radiator condenser tank hose connection
|
|
|
9.
|
Air duct
|
|
|
10.
|
Air cleaner body
|
|
