REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Under Cover Removal and Installation (Refer to GROUP 51, Under Cover .)
  • Gear Oil Draining and Supplying (Refer to .)
  • Driveshaft <RH> Removal and Installation (Refer to ).
  • Shock absorber assembly <RH> Removal and Installation (Refer to GROUP 33, Shock Absorber Assembly .)

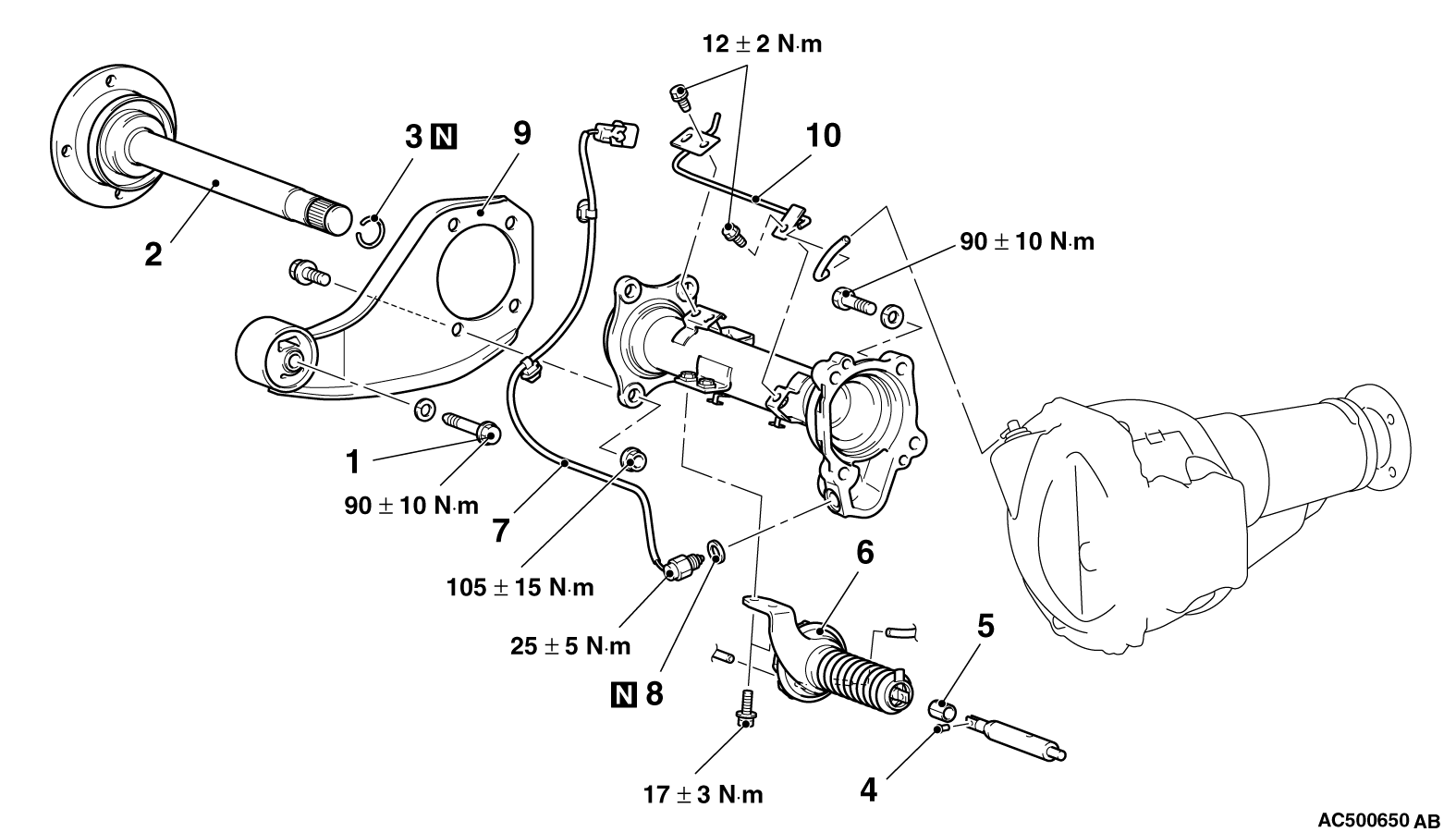

Removal steps


1.
Bolt
<<A>>
 >>A<<
 2.
Inner shaft


3.
Circlip


4.
Pin


5.
Collar


6.
Actuator assembly


7.
Free wheel engage switch assembly


·
 Support the differential with a transmission jack


8.
 Gasket


9.
 Differential mounting bracket <RH>


10.
 Breather pipe

REMOVAL SERVICE POINTS

<<A>> INNER SHAFT REMOVAL
caution When pulling the inner shaft out from the front differential carrier, be careful that the spline part of the inner shaft does not damage the oil seal.

Pull the inner shaft from the differential carrier by using the following special tools.

  • driveshaft attachment (MB990906)
  • Sliding hammer (MB990211)

INSTALLATION SERVICE POINT

>>A<< INNER SHAFT INSTALLATION
caution Be careful not to damage the lip of the dust seal and oil seal.
