REMOVAL AND INSTALLATION

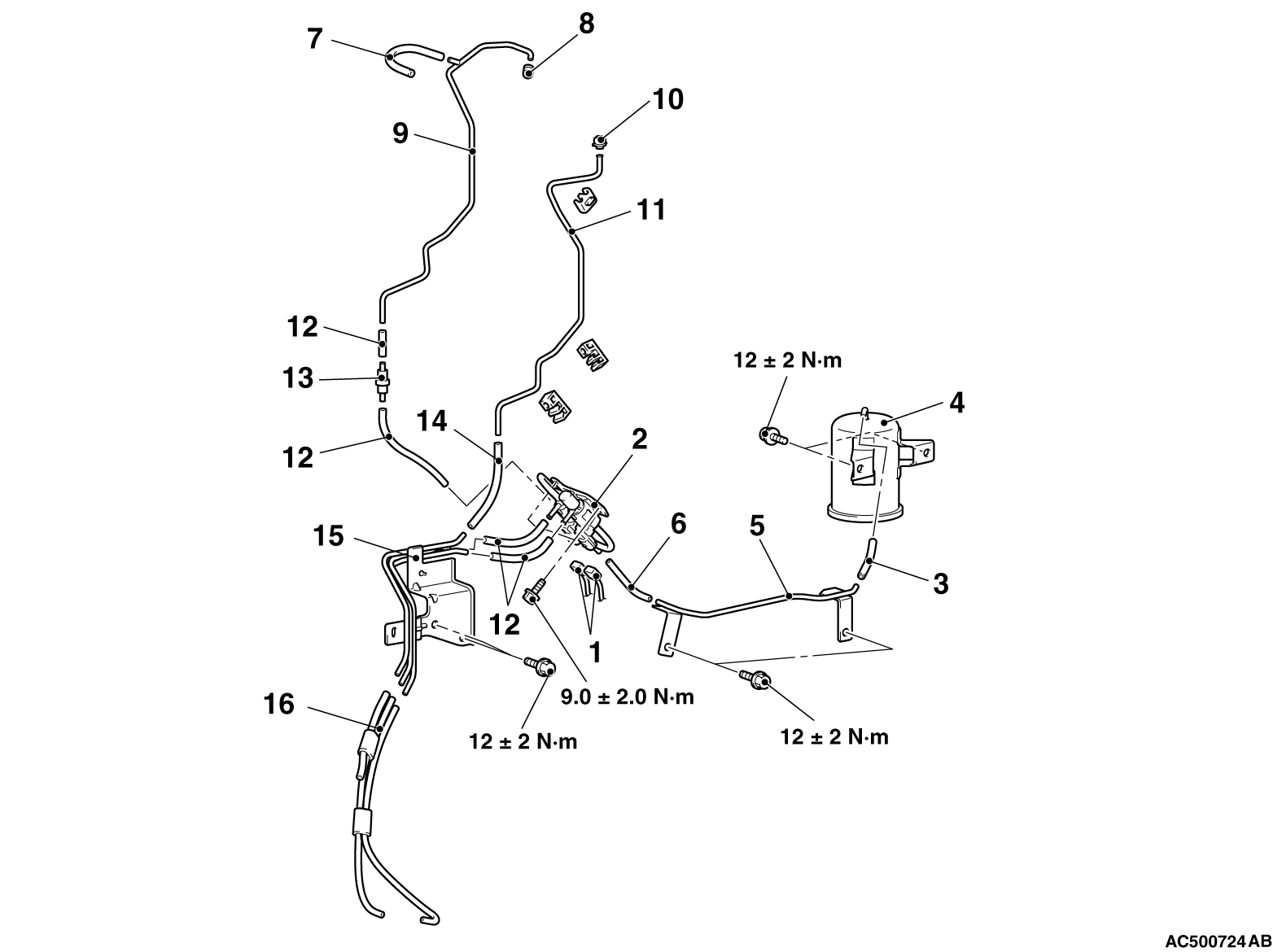

Solenoid valve assembly removal steps


1.
Solenoid valve connector


2.
Solenoid valve assembly



Vacuum tank and vacuum hose assembly and vacuum pipe assembly removal steps


3.
Vacuum hose


4.
Vacuum tank


5.
 Vacuum pipe assembly


6.
Vacuum hose


7.
Vacuum hose


8.
Vacuum valve cap


9.
Vacuum hose


10.
Breather cap


11.
Vacuum pipe


12.
Vacuum hose

>>B<<
 13.
Check valve

>>A<<
 14.
Vacuum hose

>>A<<
 15.
Vacuum pipe assembly

>>A<<
 16.
Vacuum hose assembly

INSTALLATION SERVICE POINTS

>>A<< VACUUM HOSE ASSEMBLY/VACUUM PIPE ASSEMBLY/VACUUM HOSE INSTALLATION

1.Install the vacuum hoses so that they match the identification colours of the actuator assembly nipple.

2.Install the vacuum hose assembly and the vacuum hoses to the vacuum pipe assembly, so that colour mark (yellow or blue) of the vacuum pipe assembly will match colour stripe (yellow or blue) at the vacuum hose assembly and vacuum hoses.

>>B<< CHECK VALVE INSTALLATION

Install so that the air direction arrow points to the vacuum side.
