REMOVAL AND INSTALLATION



Removal steps


1.
 Rear differential lock switch


·
 Glove box assembly (Refer to GROUP 52, Instrument Panel .)


2.
 Rear differential lock-ECU

>>A<<
 3.
 Vacuum hose


4.
 Rear differential lock harness


5.
 Vapour hose


6.
 Hose


7.
 Bracket


8.
 Rear differential lock air pump


9.
 Bracket


10.
 Rear differential lock detection switch


11.
 Gasket

INSTALLATION SERVICE POINT

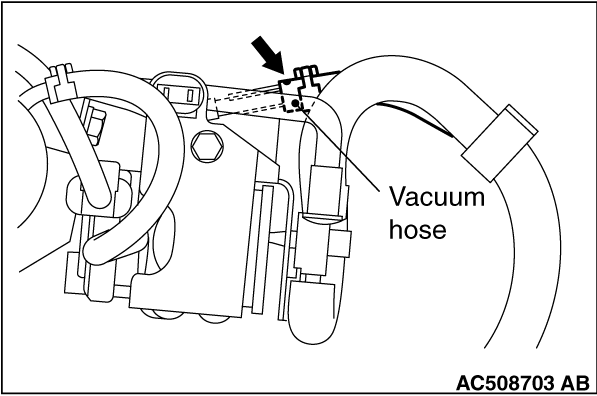

>>A<< VACUUM HOSE CONNECTION

Connect the vacuum hose so that the white mark is located upward.
