REMOVAL AND INSTALLATION


caution
  • *1: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
  • *2: Indicates different parts {MT100388 (outer), MT100389 (inner)}, which should be correctly installed.
Pre-removal Operation
  • Support the axle housing with a garage jack etc..

 Pre-installation Operation
  • Support the axle housing with a garage jack etc..

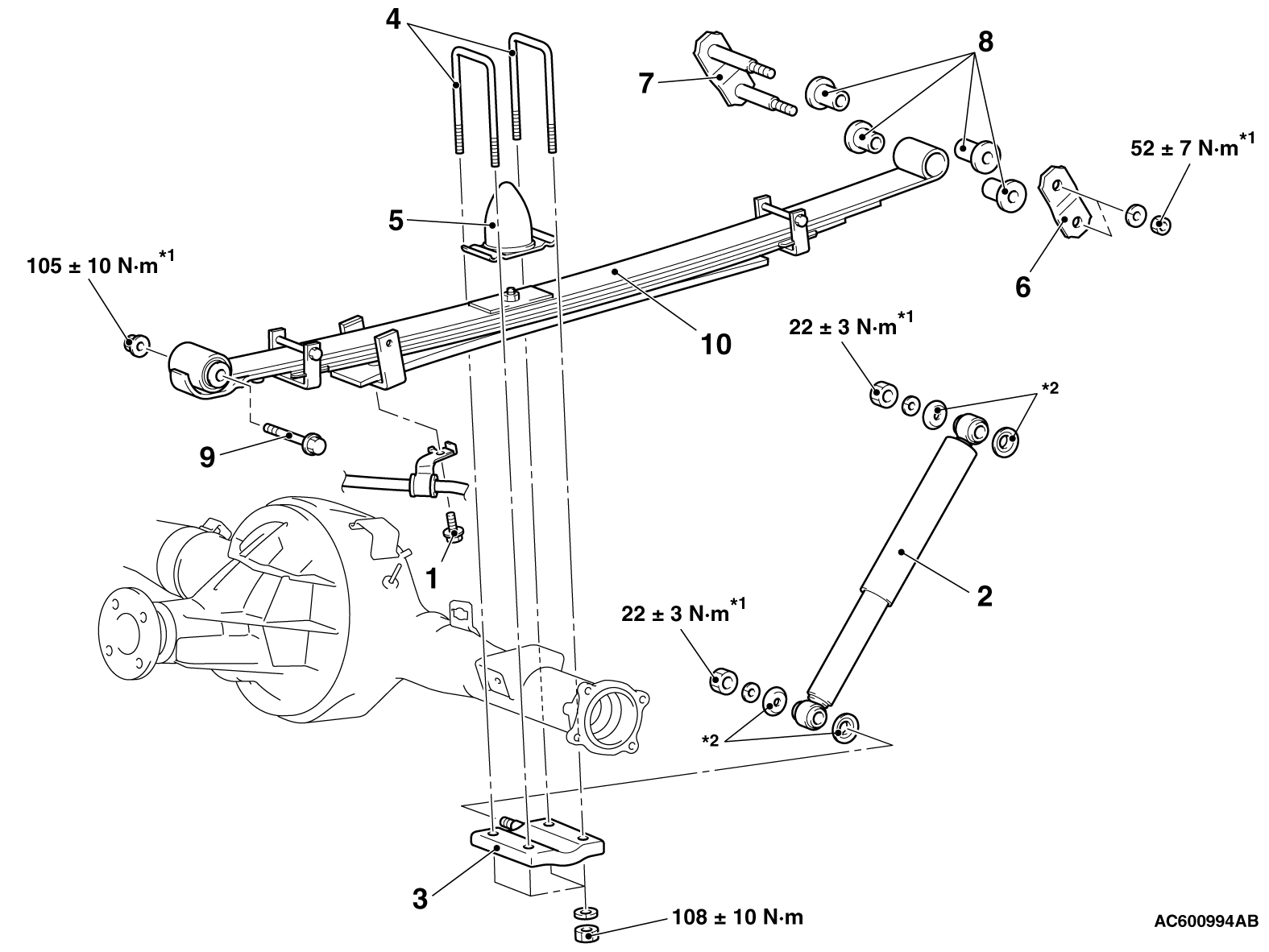

Removal steps


1.
 Parking brake cable attaching bolt


2.
 Shock absorber


3.
 U-bolt seat


4.
 U-bolts


5.
 Bump stopper


·
 Spare tyre (LH only)


6.
 Shackle plate

>>A<<
 7.
 Shackle assembly


8.
 Rubber bushings

>>A<<
 9.
 Bolt


10.
 Rear spring

INSTALLATION SERVICE POINT

>>A<< BOLT/SHACKLE ASSEMBLY INSTALLATION

1.Install the bolt from the outside toward the inside of vehicle.
2.Install the shackle assembly from the inside toward the outside of vehicle.
