REMOVAL AND INSTALLATION


Pre-removal Operation
  • Loosening the Parking Brake Cable Adjusting Nut (Refer to GROUP 36, On-vehicle Service - Parking Brake Lever Stroke Check and Adjustment ).
  • Brake Fluid Draining

 Post-installation Operation
  • Brake Fluid Filling and Air Bleeding (Refer to ).
  • Parking Brake Lever Stroke Adjustment (Refer to GROUP 36, On-vehicle Service - Parking Brake Lever Stroke Check and Adjustment ).

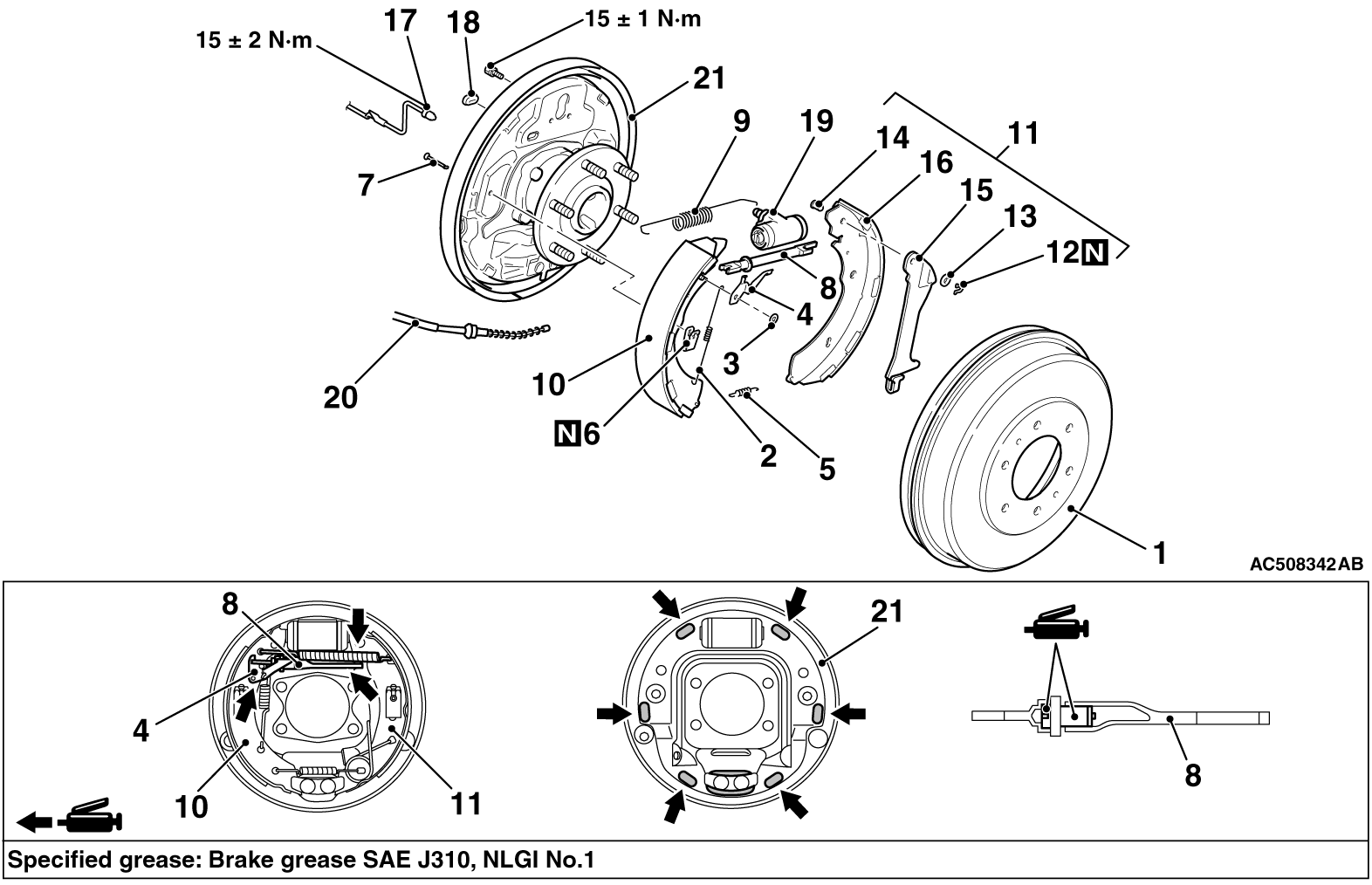

Removal steps


1.
 Brake drum


·
 Parking brake cable connection


2.
 Shoe lever spring


3.
 Clip


4.
 Auto adjuster lever


5.
 Anchor spring


6.
 Shoe hold-down spring


7.
 Shoe hold-down pin


8.
 Adjuster assembly


9.
 Piston spring


10.
 Shoe and lining assembly


11.
 Shoe and lever assembly
<<A>>
 >>B<<
 12.
 Retainer

>>A<<
 13.
 Wave washer


14.
 Pin


15.
 Parking brake lever


16.
 Shoe and lining assembly


17.
 Brake pipe connection


18.
 Plug


19.
 Wheel cylinder assembly


20.
 Parking brake cable


21.
 Backing plate (Refer to GROUP 27, Axle shaft assembly ).

REMOVAL SERVICE POINT

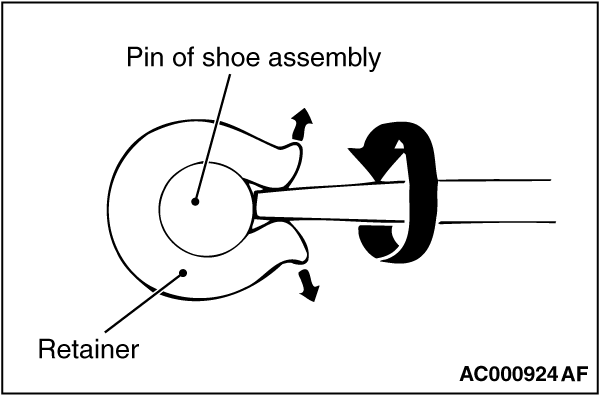

<<A>> RETAINER REMOVAL

Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

INSTALLATION SERVICE POINTS

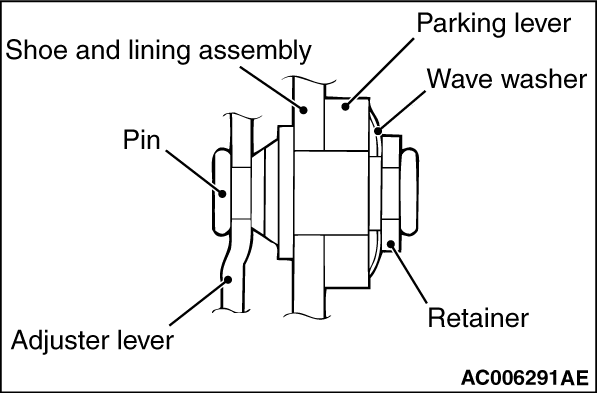

>>A<< WAVE WASHER INSTALLATION

Install the wave washer in the direction shown in the illustration.

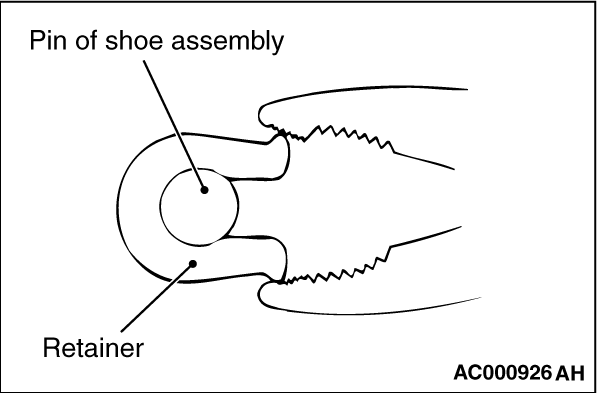

>>B<< RETAINER INSTALLATION

Use pliers or a similar tool to close the retainer end onto the pin.
