PARKING BRAKE SWITCH CHECK <BENCH SEAT>


1.Remove the lower panel assembly (Refer to GROUP 52A, Instrument Panel Assembly ).

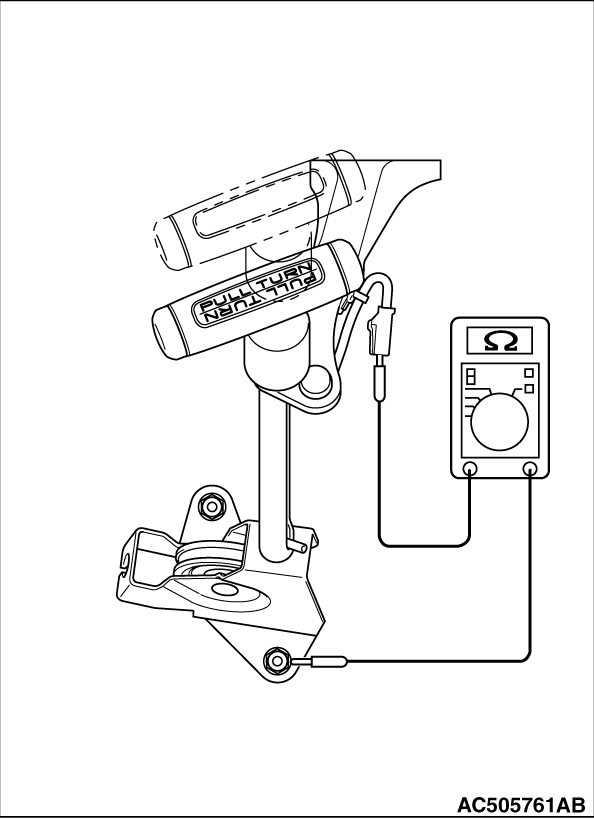

2.Check for continuity between the parking brake switch terminal and the switch mounting nut.
Switch position
 Specified condition
When parking brake stick is pulled
 Continuity (Less than 2 ohms)
When parking brake stick is released
 Open circuit
