REAR GATE PANEL FIT ADJUSTMENT


ALIGNMENT OF REAR GATE LATCH AND STRIKER

Loosen the striker mounting bolts to adjust the striker.

ADJUSTMENT OF CLEARANCE AROUND REAR GATE

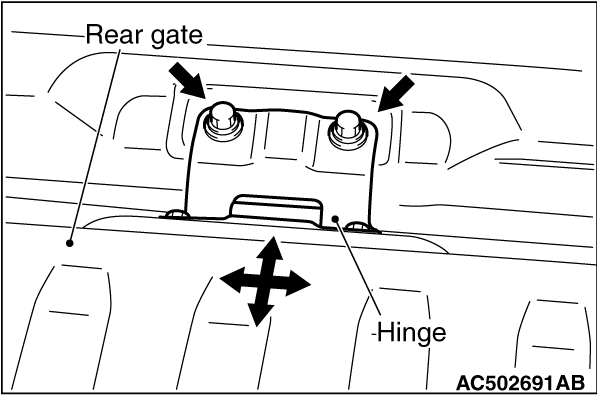

  • If the clearance between the rear gate and rear body is uneven, loosen the mounting bolts on the body of the rear gate hinge, and then adjust the rear gate assembly.

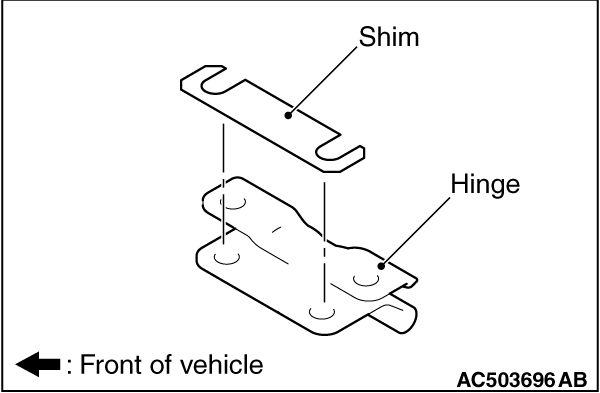

  • If the height of the rear gate and rear body is uneven, attach the shims to the rear body and hinge mounting section to adjust the height.
