INSPECTION
WINDSHIELD WASHER MOTOR CHECK |
 |
1.Remove the washer tank assembly with the washer hose connected. Then fill the washer tank

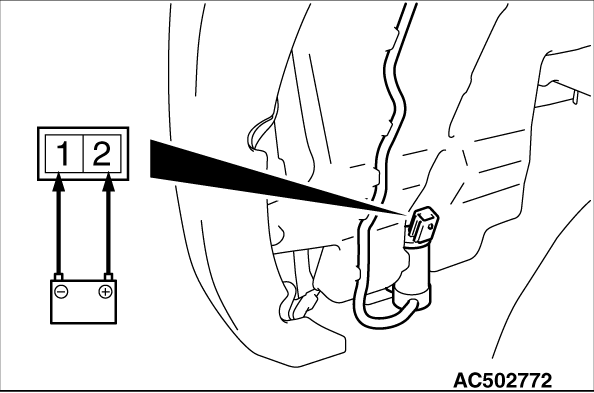

with water. 2.Check to see that the water is vigorously sprayed when connecting the terminals as shown in the illustration. |
WINDSHIELD WASHER FLUID EJECTION CHECK |

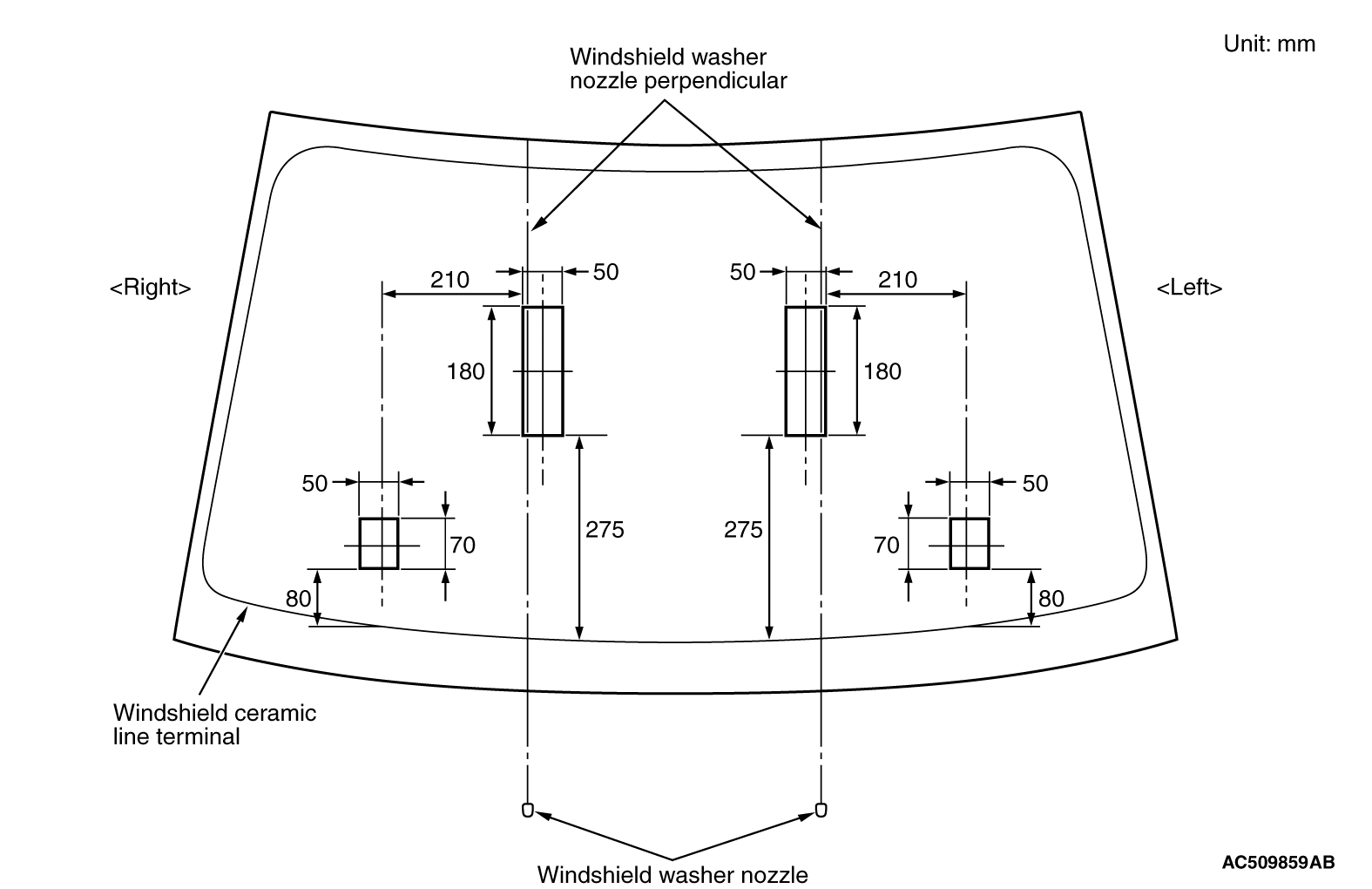

| Move the nozzle to adjust the position so that the spray is in the area shown in the illustration. |
 |
