REMOVAL AND INSTALLATION

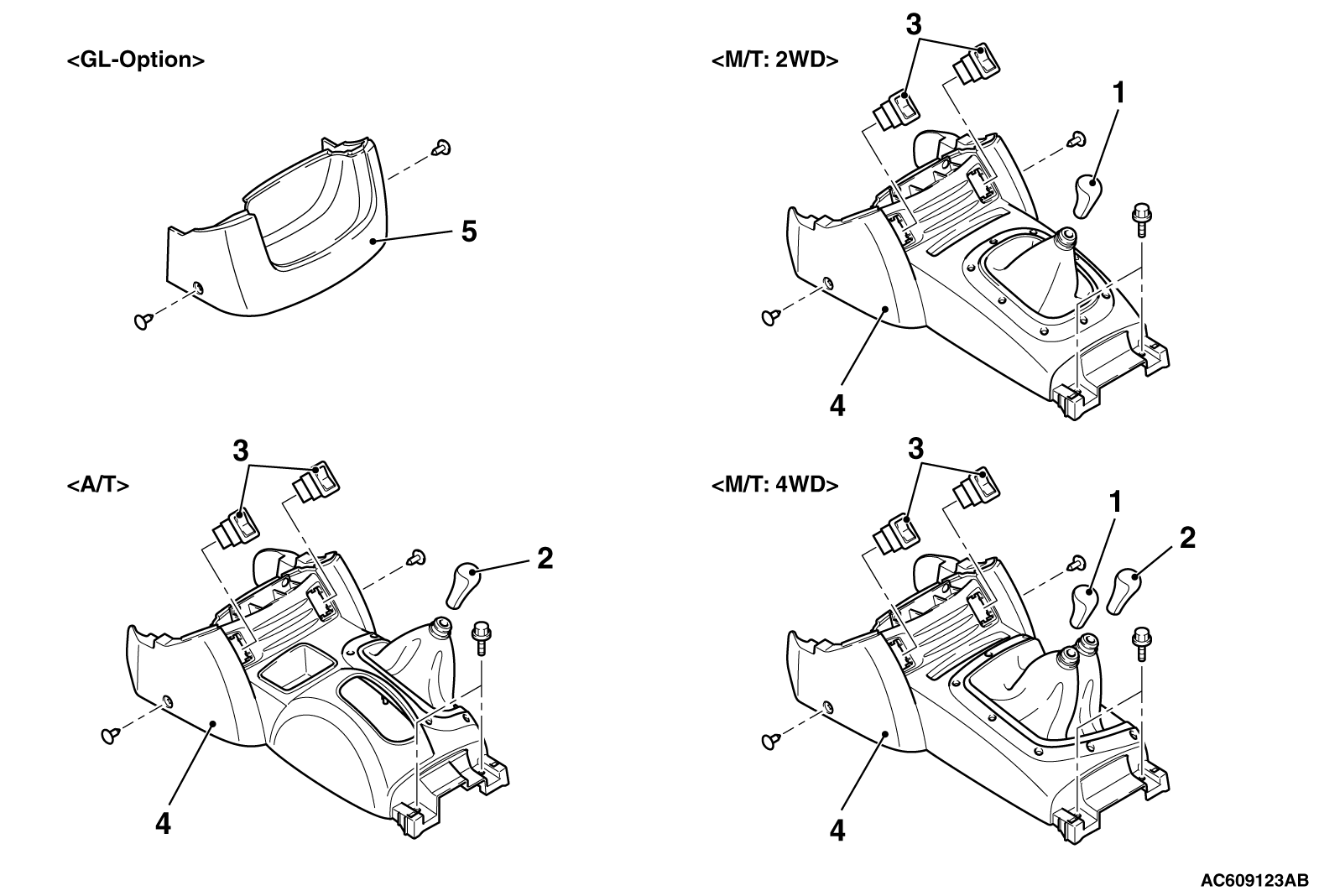

Front floor console assembly removal steps


1.
 Shift knob <M/T>


2.
 Transfer shift lever knob


3.
 Heated seat switch assembly
<<A>>
4.
 Front floor console assembly <Except GL-Option>



Centre reinforce cover removal


5.
 Centre reinforce cover <GL-Option>

REMOVAL SERVICE POINT

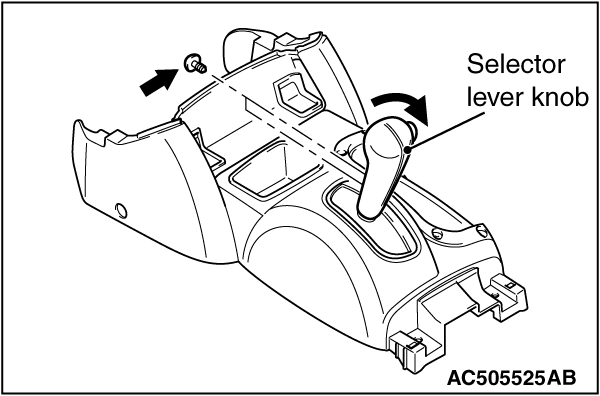

<<A>> FRONT FLOOR CONSOLE ASSEMBLY REMOVAL <A/T>

Loosen the screw of the selector lever knob, and turn the knob 90 degrees.
