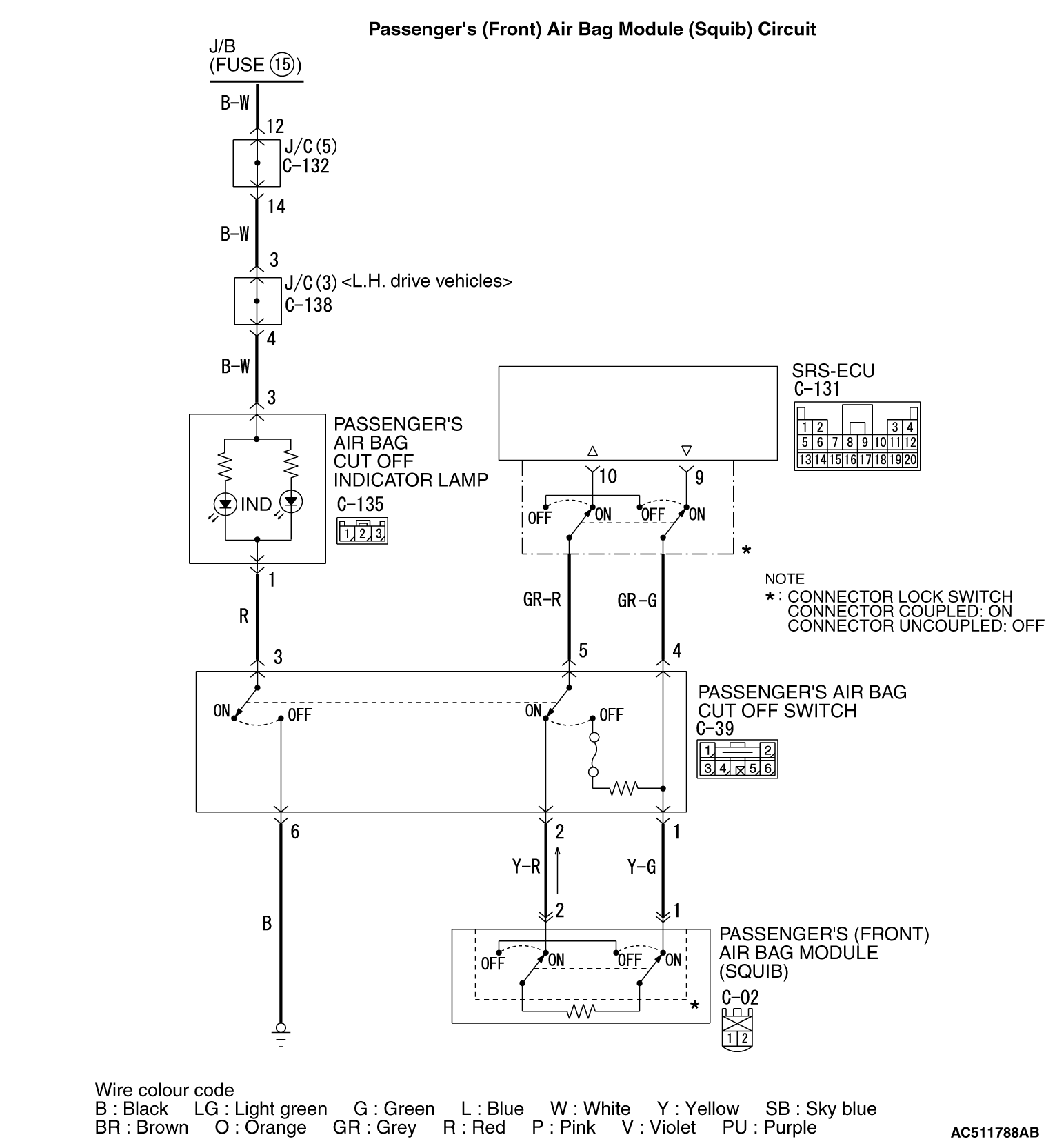

Code No.B1411: Passenger’s (front) air bag module (squib) system (open-circuited in the squib circuit)




OPERATION



  • The SRS-ECU judges how severe a collision is by detecting signals from the front impact sensors and the front air bag analogue G-sensor. If the impact is over a predetermined level, the SRS-ECU sends an ignition signal. At this time, if the front air bag safing G-sensor is on, the SRS air bag will inflate.
  • The ignition signal is input to the air bag module to inflate the air bag.

DIAGNOSIS CODE SET CONDITIONS



PROBABLE CAUSES
  • Open circuit in the passenger’s (front) air bag module (squib) circuit
  • Improper connector contact
  • Malfunction of the passenger’s air bag cut off switch
  • Malfunction of the SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check the passenger’s air bag cut off switch.
Check the passenger’s air bag cut off switch (Refer to ).

Q. Is the diagnosis code set?
Go to Step 2 .
Replace passenger’s air bag cut off switch (Refer to ).

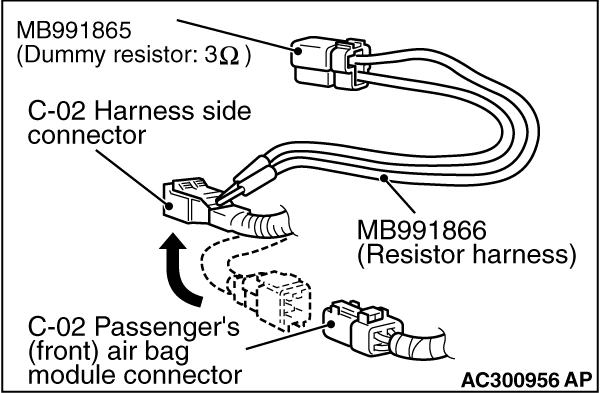

STEP 2. Check the diagnosis code by connecting a dummy resistor. (M.U.T.-III diagnosis code)
(1)Disconnect the negative battery terminal.

(2)Disconnect passenger’s (front) air bag module connector C-02.

(3)Connect special tool dummy resistor (MB991865) to special tool resistor harness (MB991866).
(4)
caution Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
Disconnect the passenger’s (front) air bag module connector C-02, and insert special tool (MB991866) into the harness side connector by backprobing.
(5)Connect the negative battery terminal.
(6)Erase the diagnosis code memory, and check the diagnosis code.

Q. Is diagnosis code B1411 set?

Go to Step 3 .

Replace the passenger’s (front) air bag module (Refer to ).

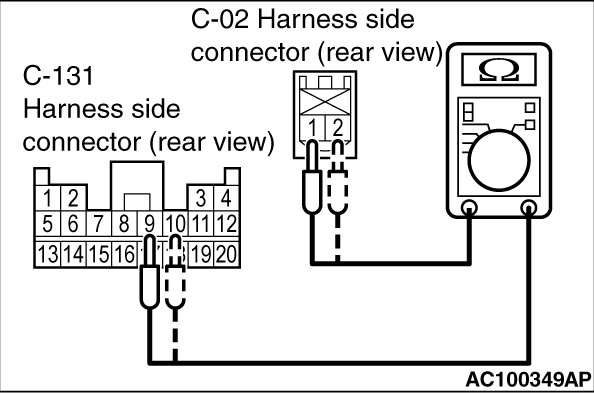

STEP 3. Resistance measurement between SRS-ECU connector C-131 (terminal No.9 and 10) and the passenger’s (front) air bag module connector C-02 (terminal No.1 and 2).
(1)Disconnect the negative battery terminal.


(2)Disconnect SRS-ECU connector C-131 and passenger’s (front) air bag module connector C-02.

(3)
caution Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
Resistance measurement between the following terminals.

  • SRS-ECU connector C-131 terminal No.9 and the passenger’s (front) air bag module connector C-02 terminal No.1
  • SRS-ECU connector C-131 terminal No.10 and the passenger’s (front) air bag module connector C-02 terminal No.2
OK: Continuity (Less than 2 Ω)

Q. Are the check results normal?

Go to Step 4 .

Repair the harness wires between SRS-ECU connector C-131 (terminal No.9 and 10) and passenger’s (front) air bag module connector C-02 (terminal No.1 and 2).

STEP 4. Check whether the diagnosis code is reset.

Q. Is diagnosis code B1411 set?
Replace the SRS-ECU (Refer to ).
An intermittent malfunction is suspected (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
