Remove the fuel gauge unit (Refer to GROUP 13B, Fuel Tank  ).
|
|
When float of the fuel gauge unit is in stopper positions "F" and "E", ensure that resistance
between the fuel gauge unit terminal and earth terminal is within the standard value.
Standard value:
|
|
Float position
|
Gauge resistance Ω
|
Stopper position "F"
|
13.0 ± 1
|
Stopper position "E"
|
120.0 ± 1
|
|
When the float is moved slowly between stopper positions "F" and "E", ensure that the
resistance is smoothly changing.
|
|

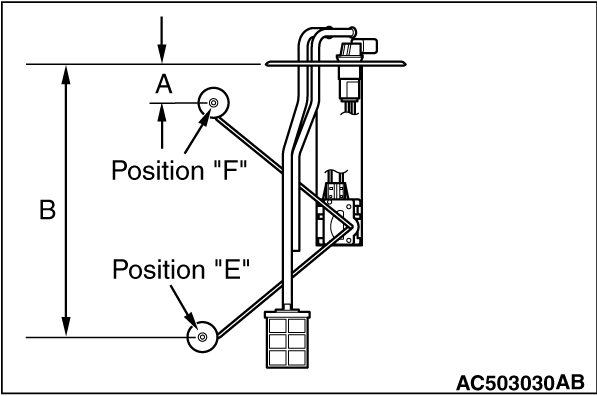

When float is moved to contact the float arm on the stopper, ensure that stopper positions
"F" and "E" are within the standard value.
Standard value:
|
|
Float position
|
Float height mm
|
Stopper position "F"
|
35.0 ± 3
|
Stopper position "E"
|
254.7 ± 3
|
|
|
