REMOVAL AND INSTALLATION

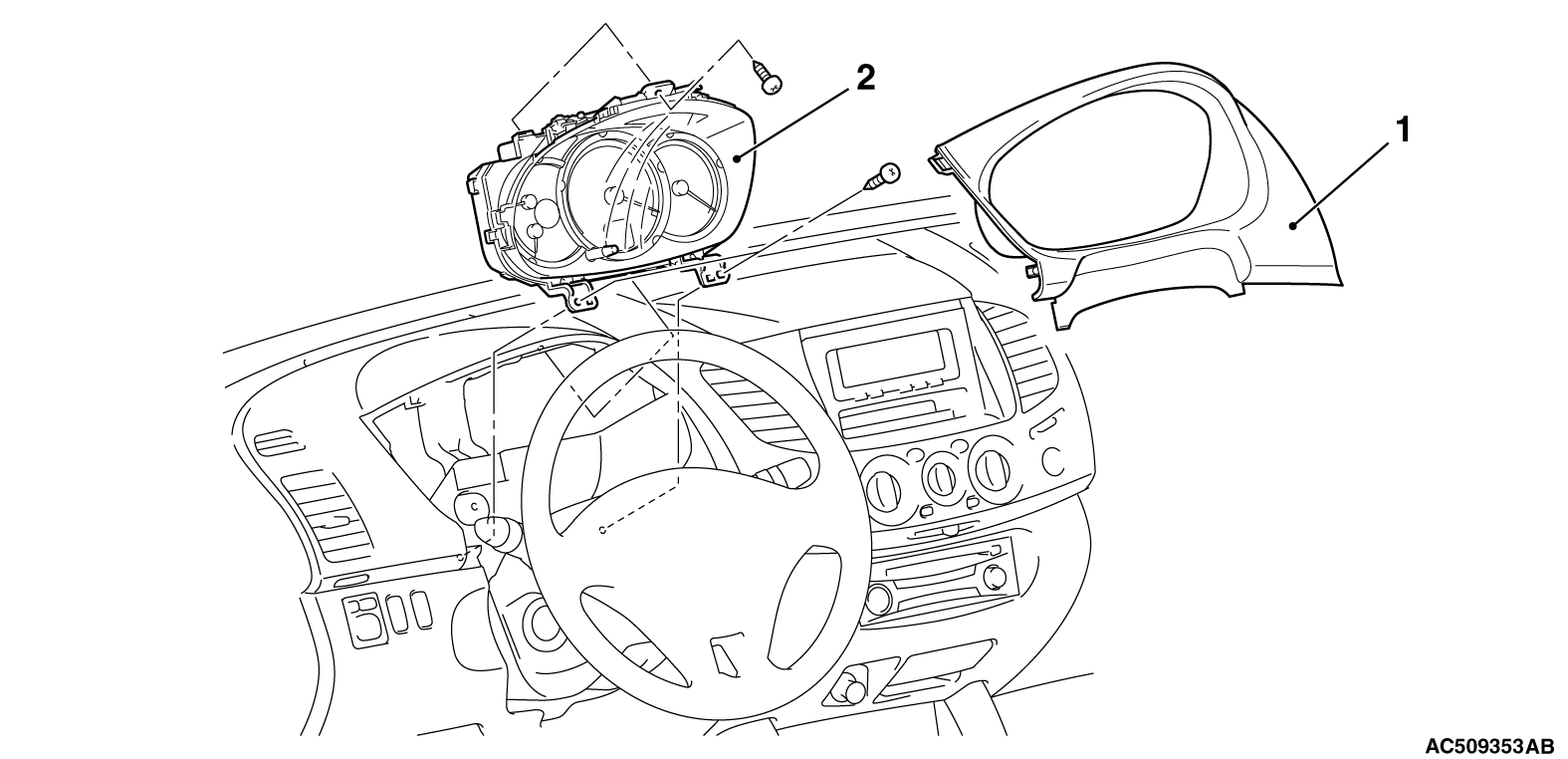

Removal steps


1.
 Combination meter bezel (Refer to GROUP 52A, Instrument Panel Assembly ).

>>A<<
 2.
 Combination meter assembly

INSTALLATION SERVICE POINT

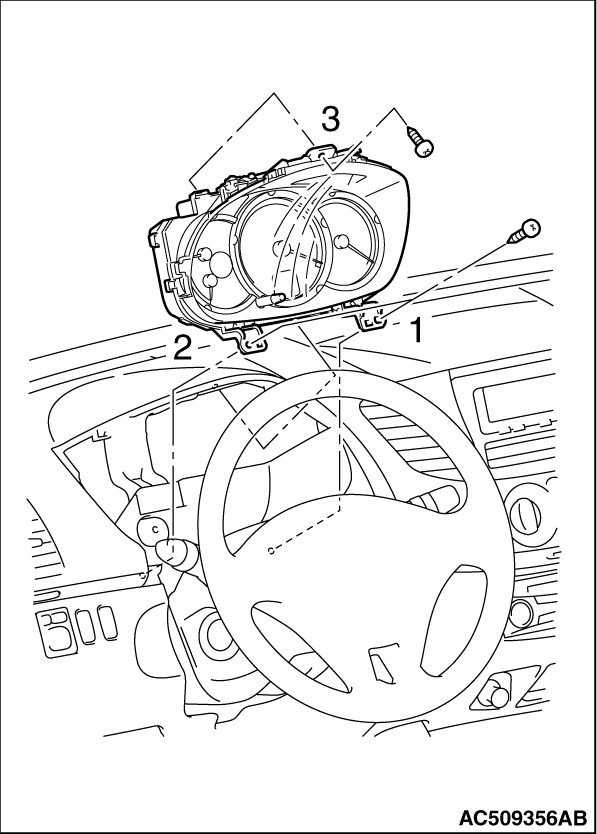

>>A<< COMBINATION METER INSTALLATION

Fixing order of screws from 1 to 3.
