REMOVAL AND INSTALLATION


caution When the immobilizer-ECU is replaced, refer to the ID Code Registration Judgment Table and register the each ID code.

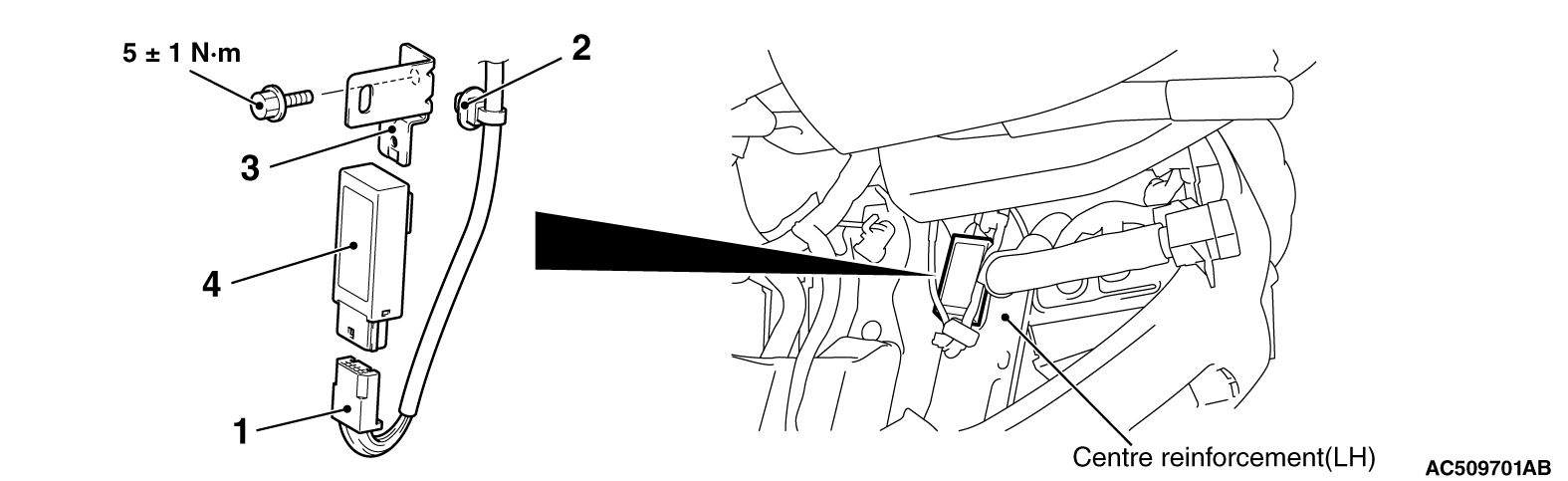

Removal steps


·
 Lower panel assembly (Refer to GROUP 52A, Instrument Panel Assembly ).


1.
 Immobilizer-ECU connector


2.
 Harness clip


3.
 Immobilizer-ECU bracket


4.
 Immobilizer-ECU
