REMOVAL AND INSTALLATION

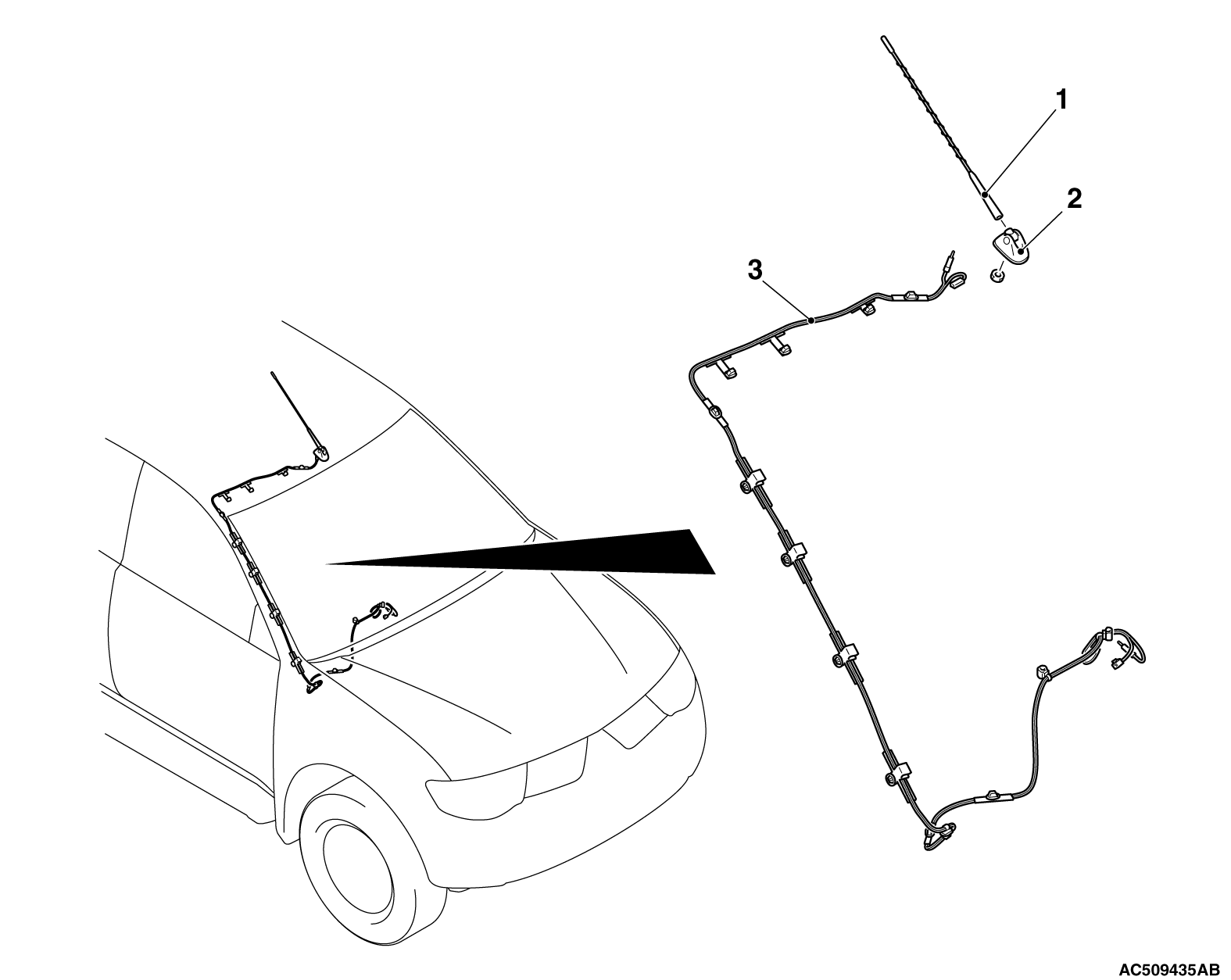

ROOF ANTENNA

			Removal steps
		·	Instrument panel assembly (Refer to GROUP 52A, Instrument Panel Assembly ).
		·	Headlining (Refer to GROUP 52A, Headlining ).
		1.	Antenna rod
		2.	Antenna base
		3.	Antenna feeder cable

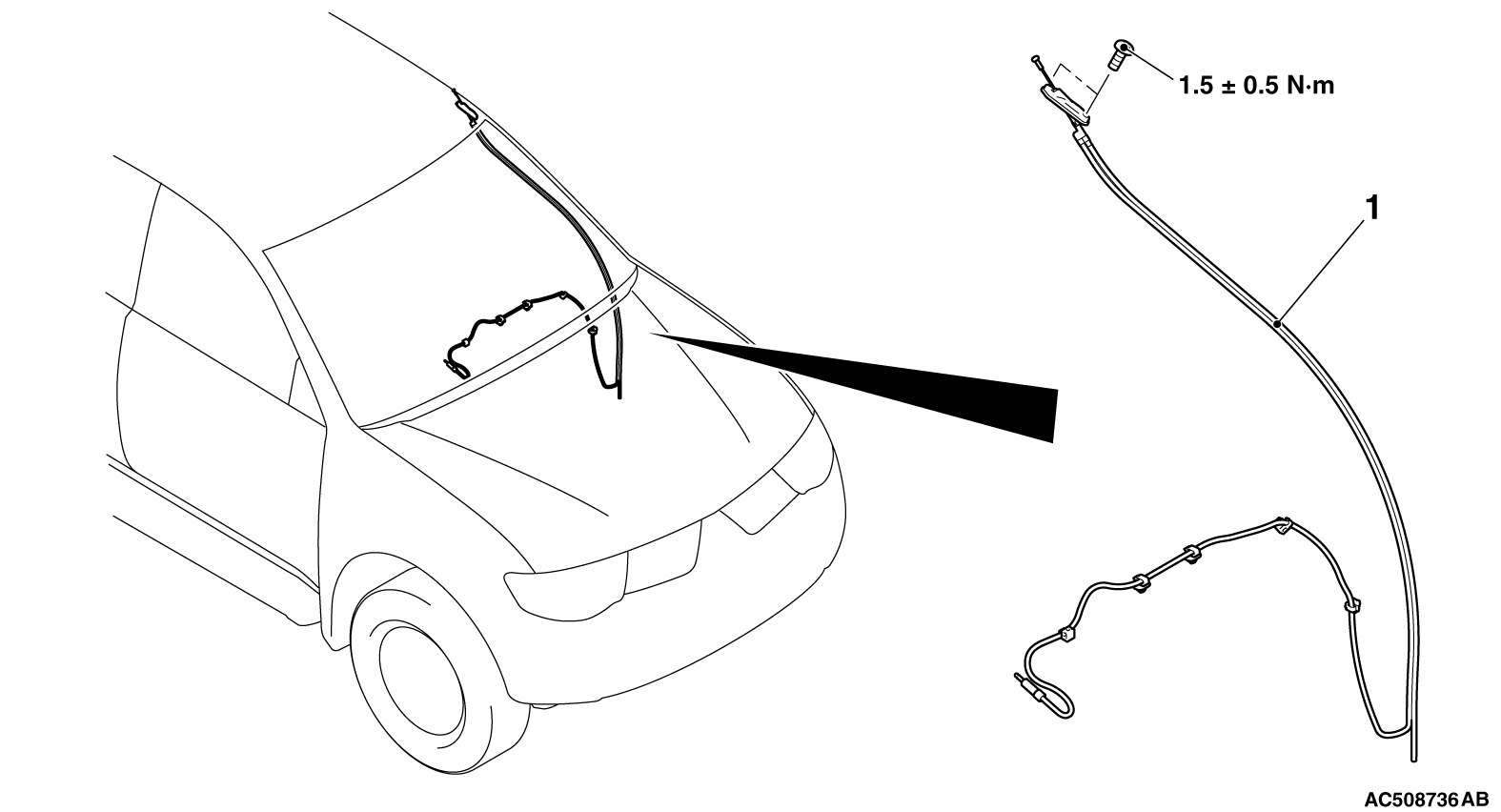

PILLAR ANTENNA

		Removal steps
	·	Centre upper box hood or RV meter hood, lower panel assembly centre upper panel assembly and centre lower panel assembly (Refer to GROUP 52A, Instrument Panel Assembly ).
	·	Radio and CD player (Refer to ).
	·	Cowl side trim (Refer to GROUP 52A, Interior Trim <Single cab> or <Club cab> or <Double cab> ).
<<A>>	1.	Antenna assembly

Observe the following steps to make the feeder cable of the antenna to be routed easily during reinstallation.

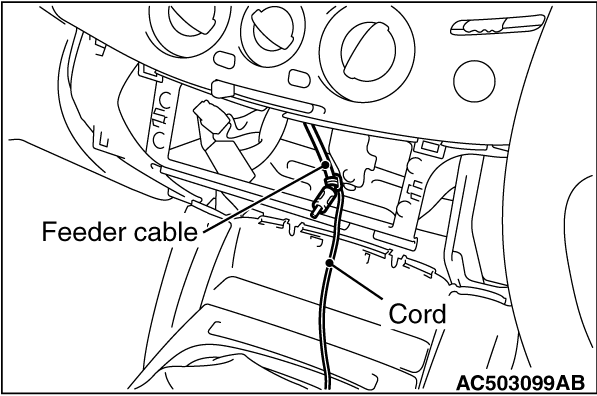

1.Secure a cord to the end of the feeder cable.

2.Pull out the feeder cable slightly until the tube end of the antenna can been seen.

caution

Make sure that the cord is not loosened.

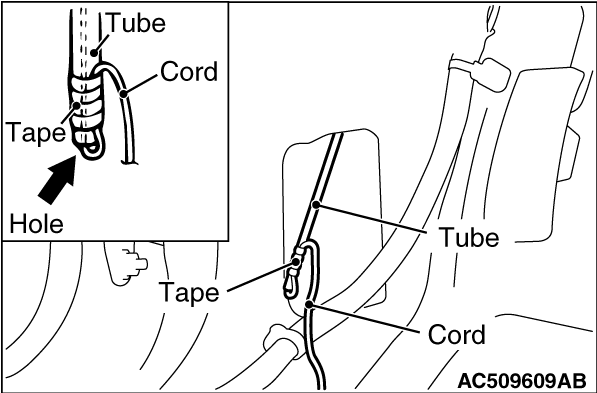

3.Insert a cord into the tube end, and secure the cord with plastic tape as shown.
4.Remove the antenna assembly by pulling it gradually.
