Inspection Procedure C-3: The Ignition Switch (IG1) Signal is not Received.


caution Whenever the ECU is replaced, ensure that the input signal circuit is normal.


COMMENTS ON TROUBLE SYMPTOM




  • Lamp reminder function
  • Turn-signal lamp

PROBABLE CAUSES



  • Malfunction of the ETACS-ECU
  • Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

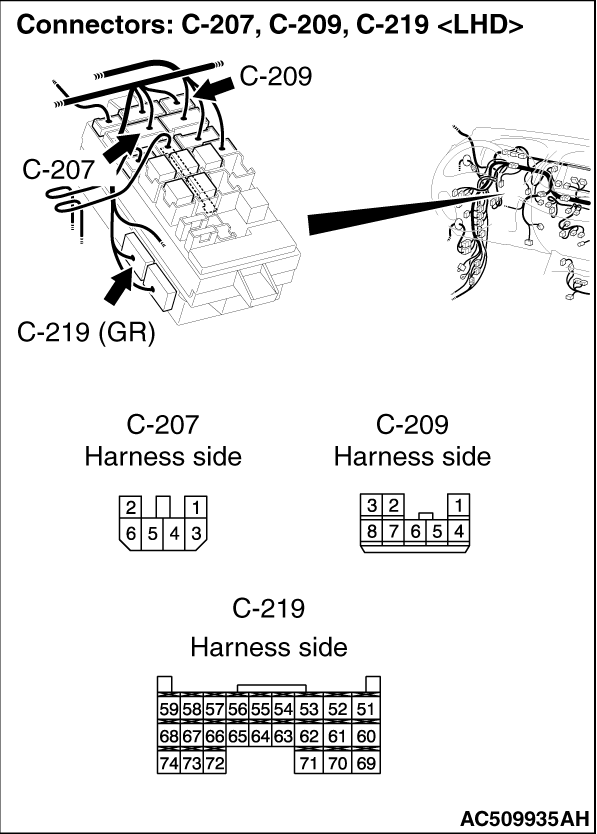

STEP 1. Connector check: C-219 ETACS-ECU connector


Q. Is the check result normal?

Go to Step 2.

Repair the defective connector.

STEP 2. Voltage measurement at the C-219 ETACS-ECU connector.


(1)Disconnect the connector, and measure at the wiring harness side.
(2)Turn the ignition switch to the "ON" position.

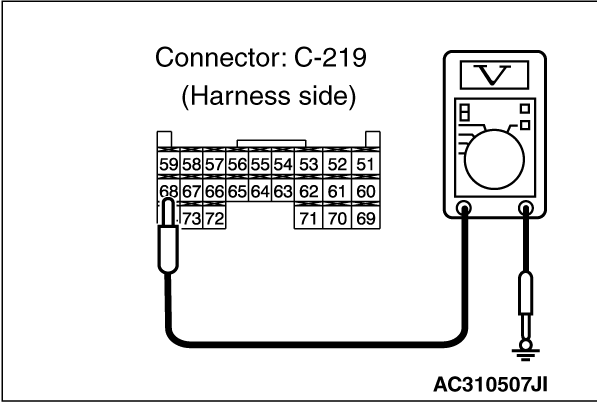

(3)Voltage between C-219 ETACS-ECU connector terminal No.68 and body earth
OK: System voltage

Q. Is the check result normal?

Go to Step 4.

Go to Step 3.

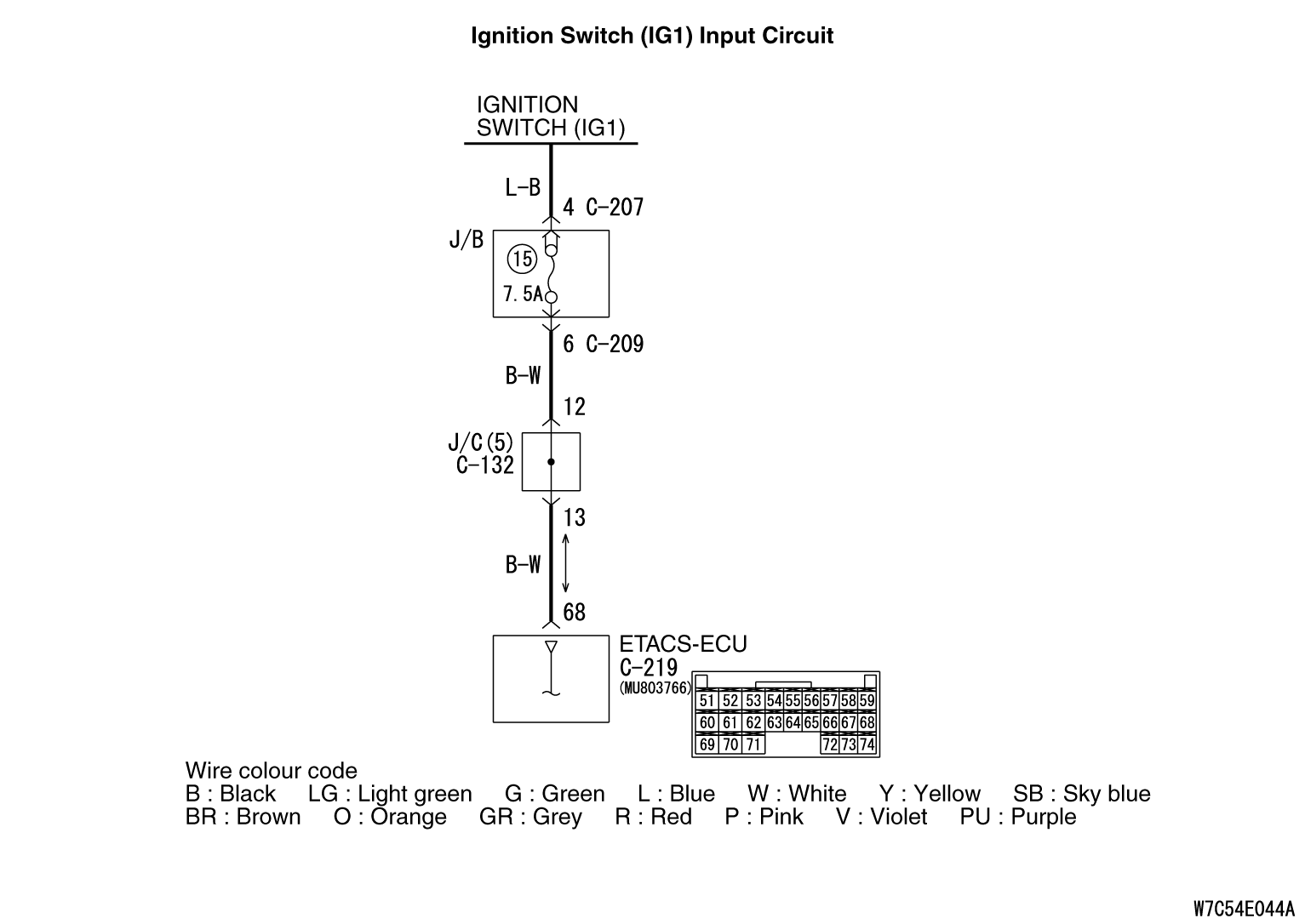

STEP 3. Check the wiring harness between C-219 ETACS-ECU connector terminal No.68 and the ignition switch (IG1).





note

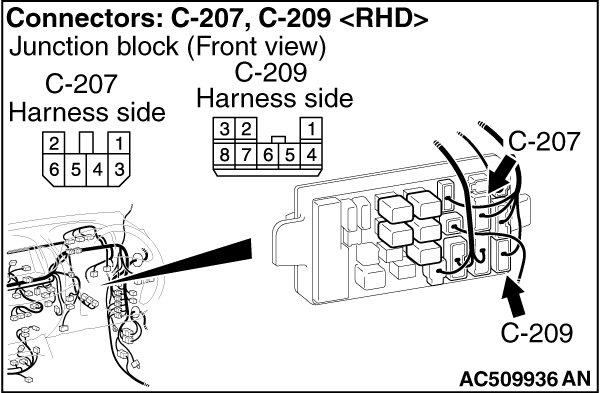

Prior to the wiring harness inspection, check joint connector C-132, junction block connectors C-207 and C-209, and repair if necessary.

  • Check the power supply line for open circuit.

Q. Is the check result normal?

The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction ).

Repair the wiring harness.

STEP 4. M.U.T.-III data list
Check the input signal from the ignition switch (IG1).

  • Turn the ignition switch to the "ON" position.
Item No.
 Item name
 Normal condition
30
 Ignition switch(IG1)
 ON
OK: Normal condition is displayed.

Q. Is the check result normal?
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction ).
Replace the ETACS-ECU.
