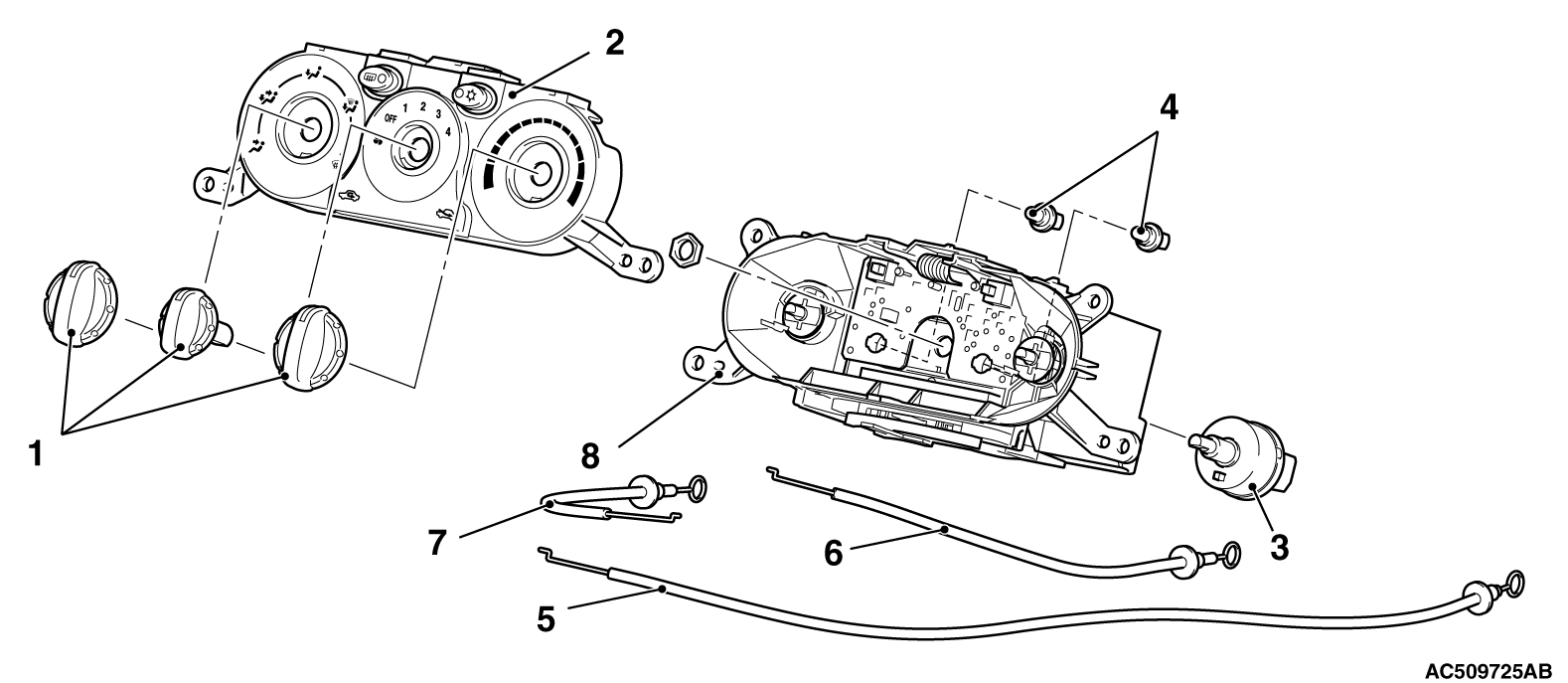

DISASSEMBLY AND REASSEMBLY



Disassembly steps


1.
 Knob


2.
 Panel


3.
 Blower switch


4.
 Bulb
<<A>>
5.
 Outside/inside air selection damper control cable
<<A>>
6.
 Mode selection damper control cable
<<A>>
7.
 Air mixing damper control cable


8.
 Heater control

DISASSEMBLY SERVICE POINT

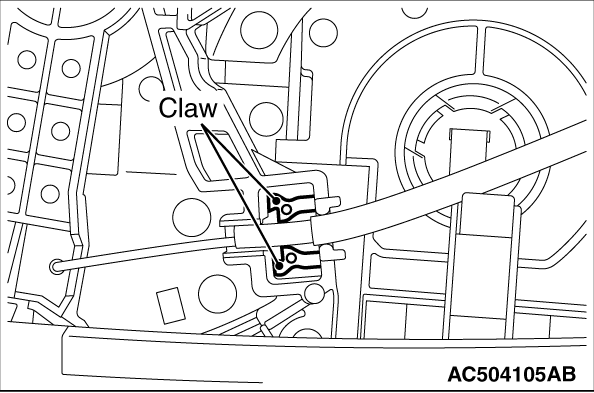

<<A>> OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL CABLE/MODE SELECTION DAMPER CONTROL CABLE REMOVAL

Spread out the claw section, and remove the cable.
