INSPECTION

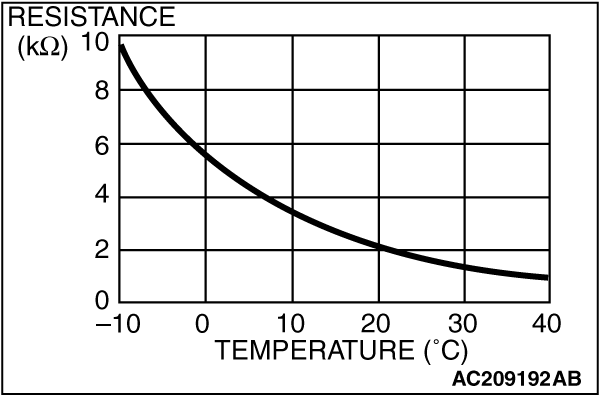

AMBIENT TEMPERATURE SENSOR |
 |
Check to see that the resistance shown in the graph is almost satisfied when measuring the resistance between the sensor terminals under two or more different temperature conditions. |
INTERIOR TEMPERATURE SENSOR |
|
Check to see that the resistance shown in the graph is almost satisfied when measuring the resistance between the sensor terminals under two or more different temperature conditions. |
PHOTO SENSOR CHECK |
| Check that the display voltage changes between in direct sunlight and in doors when checking the M.U.T.-III data list item No.67. |
