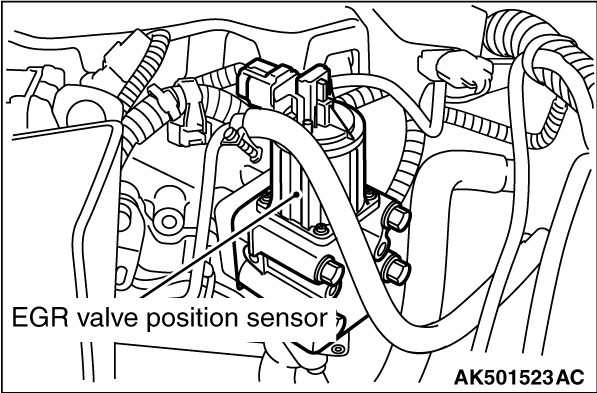

The EGR valve position sensor, which is mounted on the EGR valve, converts the position
of the EGR valve into the electrical signals and inputs it into the engine-ECU.
Based on the voltage that is output by this sensor, the engine-ECU effects the EGR valve
feedback control.
|
|

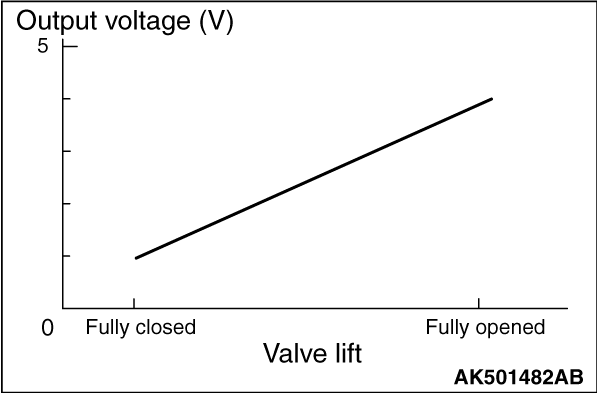

The diagram describes the characteristics of this sensor.
|
|

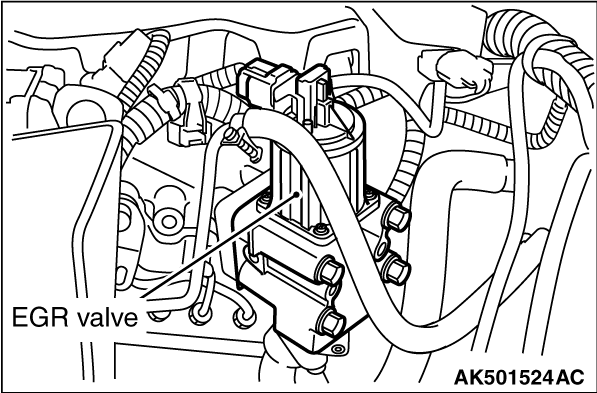

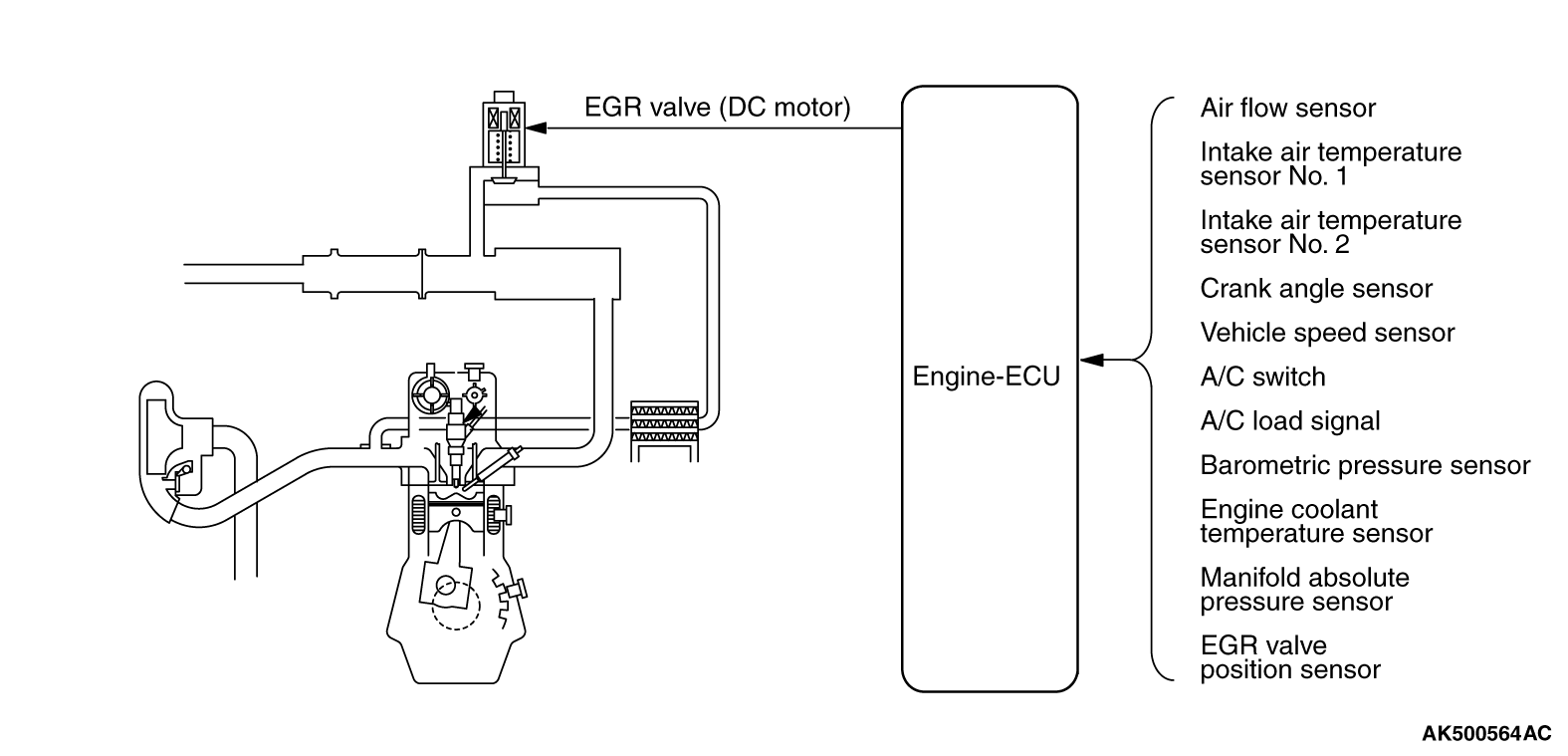

The EGR valve is located in the middle of the bypass that recirculates the exhaust gas
from the exhaust manifold into the intake manifold. It is a type of DC motor that controls the
opening and closing of the valve in accordance with the changes in the direction of the electrical
current.
|
