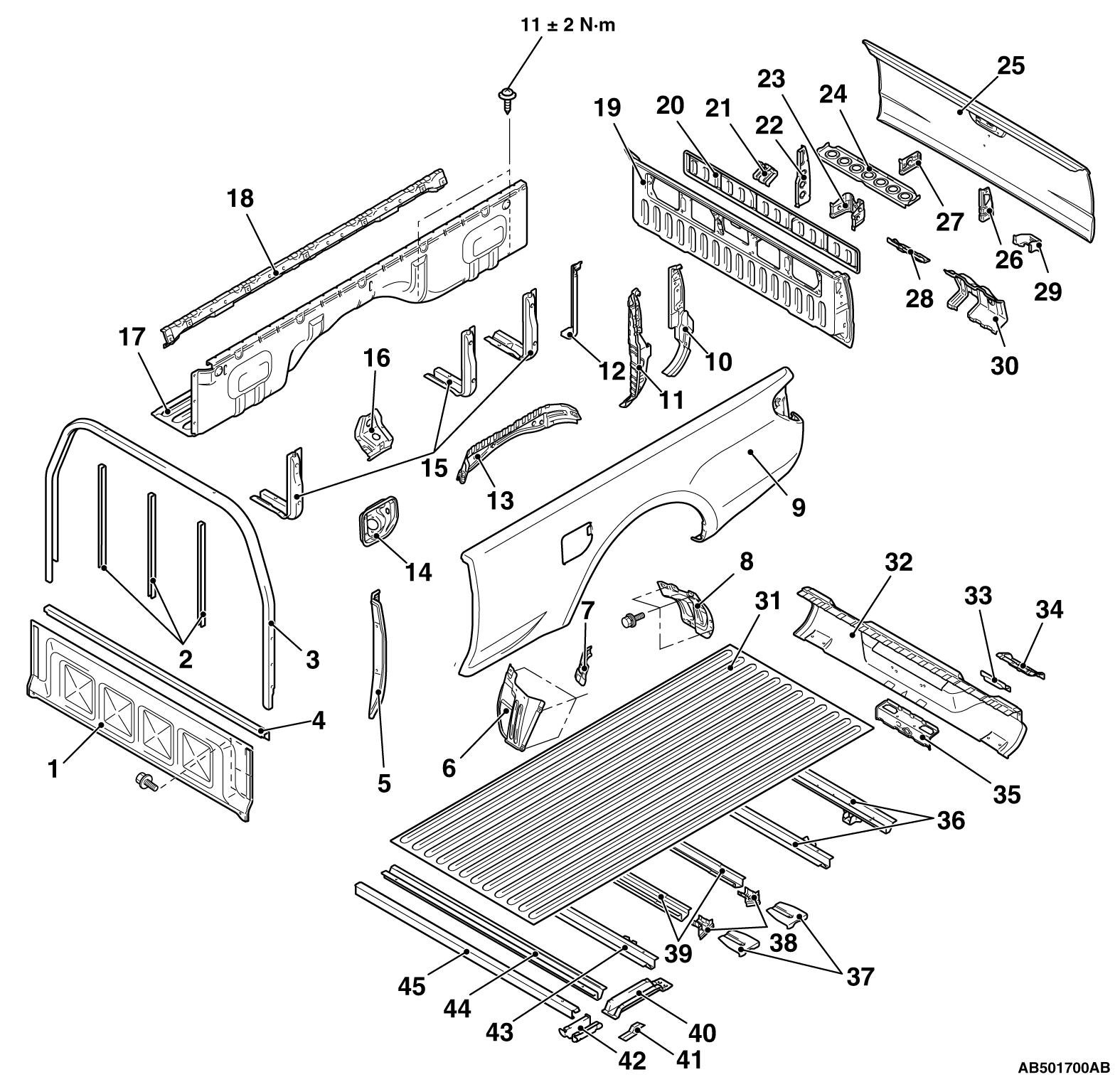

1.
|
Rear body header board
|
2.
|
Guard frame inside post
|
3.
|
Guard frame post outside
|
4.
|
Header board top rail
|
5.
|
Side gate panel front
|
6.
|
Side skirt panel stay front
|
7.
|
Skirt panel reinforcement front
|
8.
|
Side skirt panel stay rear
|
9.
|
Side gate outer panel
|
10.
|
Side gate reinforcement rear
|
11.
|
Rear lamp housing
|
12.
|
Side gate inner extension rear
|
13.
|
Rear wheelhouse inner reinforcement lower
|
14.
|
Filler neck bracket (Left side)
|
15.
|
Side gate post rear
|
16.
|
Rear wheelhouse stay upper
|
17.
|
Side gate panel inner
|
18.
|
Rope hook reinforcement
|
19.
|
Rear gate panel inner
|
20.
|
Rear gate cover
|
21.
|
Rear gate handle bracket
|
22.
|
Rear gate inner reinforcement
|
23.
|
Rear gate inner reinforcement side
|
24.
|
Rear gate inner beam
|
25.
|
Rear gate panel outer
|
26.
|
Rear gate hinge reinforcement
|
27.
|
Rear gate latch reinforcement
|
28.
|
Rear gate latch reinforcement
|
29.
|
Cushion rubber reinforcement
|
30.
|
Rope hook reinforcement rear gate
|
31.
|
Floor panel A
|
32.
|
Rear end sill outer
|
33.
|
Rear body hinge bracket
|
34.
|
Rear body hinge reinforcement
|
35.
|
Licence plate lamp reinforcement
|
36.
|
Floor cross sill
|
37.
|
Rear floor side reinforcement
|
38.
|
Cross sill centre reinforcement
|
39.
|
Cross sill centre
|
40.
|
Rear body floor B sill
|
41.
|
No.1 mounting reinforcement
|
42.
|
Rear body mount No.1 bracket
|
43.
|
Floor third cross sill
|
44.
|
Floor second cross sill
|
45.
|
Cross sill first
|
