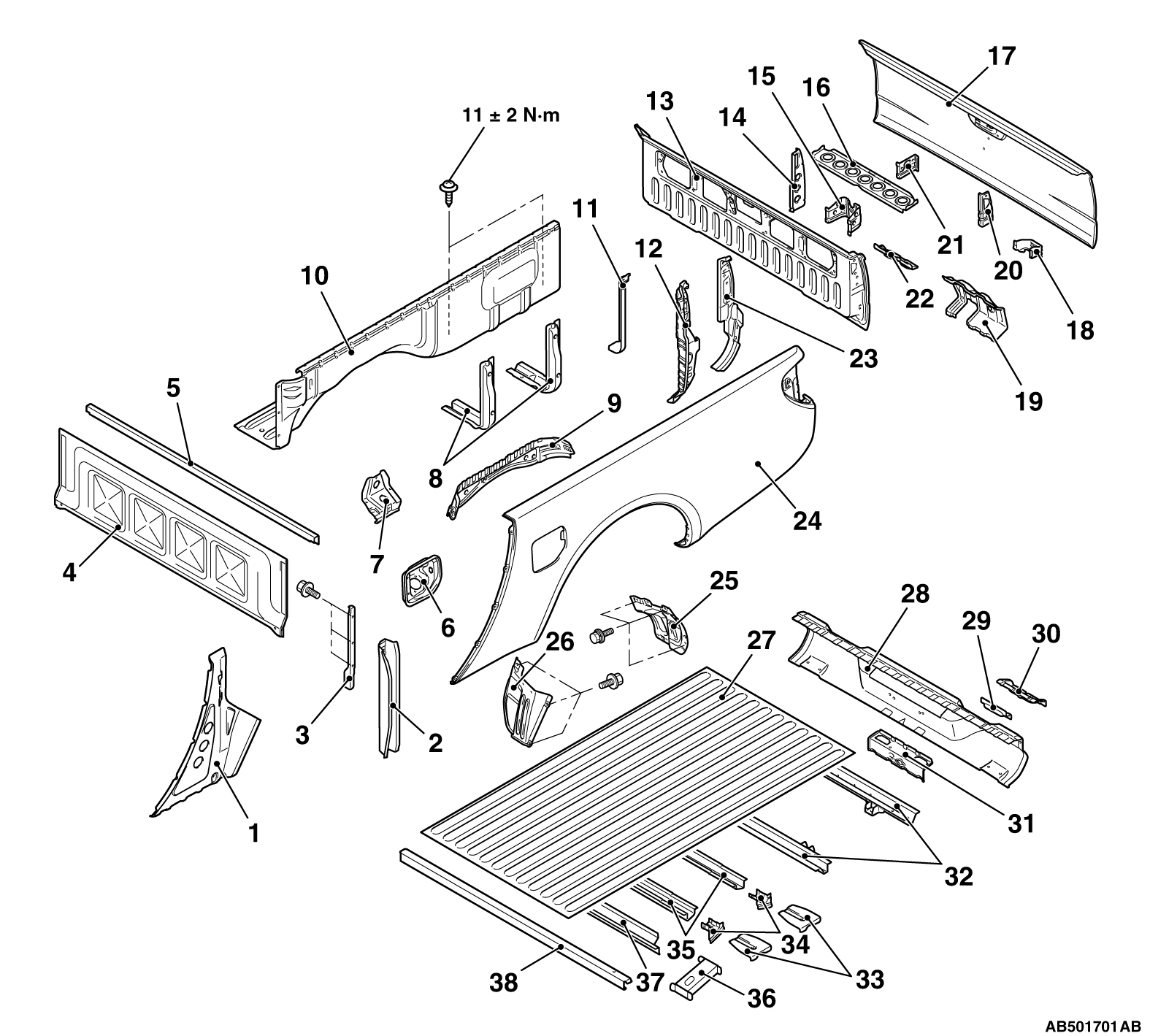

1
|
Side gate panel front
|
2.
|
Side gate front reinforcement
|
3.
|
Front gate frame side
|
4.
|
Rear body header board
|
5.
|
Header board top rail
|
6.
|
Filler neck bracket (Left side)
|
7.
|
Rear wheel house stay upper
|
8.
|
Side gate post rear
|
9.
|
Rear wheelhouse inner reinforcement lower
|
10.
|
Side gate panel inner
|
11.
|
Side gate inner extension rear
|
12.
|
Rear lamp housing
|
13.
|
Rear gate panel inner
|
14.
|
Rear gate inner reinforcement
|
15.
|
Rear gate inner reinforcement side
|
16.
|
Rear gate inner beam
|
17.
|
Rear gate panel outer
|
18.
|
Cushion rubber reinforcement
|
19.
|
Rope hook reinforcement rear gate
|
20.
|
Rear gate hinge reinforcement
|
21.
|
Rear gate inner reinforcement centre
|
22.
|
Rear gate latch reinforcement
|
23.
|
Side gate reinforcement rear
|
24.
|
Side gate outer panel
|
25.
|
Side skirt panel stay rear
|
26.
|
Side skirt panel stay front
|
27.
|
Floor panel A
|
28.
|
Rear end sill outer
|
29.
|
Rear body hinge bracket
|
30.
|
Rear body hinge reinforcement
|
31.
|
Licence plate lamp bracket
|
32.
|
Floor cross sill
|
33.
|
Rear floor side reinforcement
|
34.
|
Cross sill centre reinforcement
|
35.
|
Cross sill centre
|
36.
|
Rear body bracket A
|
37.
|
Floor third cross sill
|
38.
|
Cross sill first
|
