SIDE BODY <SINGLE CAB>
| No. |
Standard measurement point |
Hole shape |
Size mm |
| 37 |
Front pillar positioning notch (upper) |
- |
- |
| 38 |

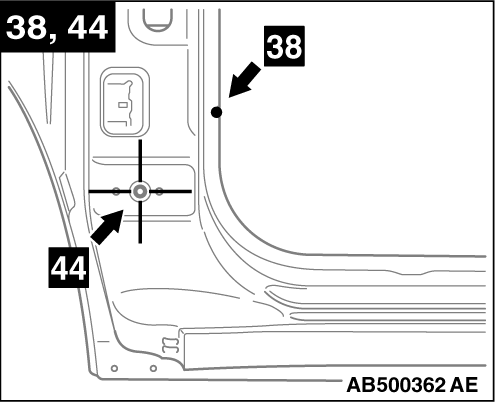

Front pillar positioning notch (lower) |
- |
- |
| 39 |
Side roof rail positioning notch |
- |
- |
| 40 |
Side sill positioning notch |
- |
- |
| 41 |
Quarter panel positioning notch (upper) |
- |
- |
| 42 |
Quarter panel positioning notch (lower) |
- |
- |
| 43 |

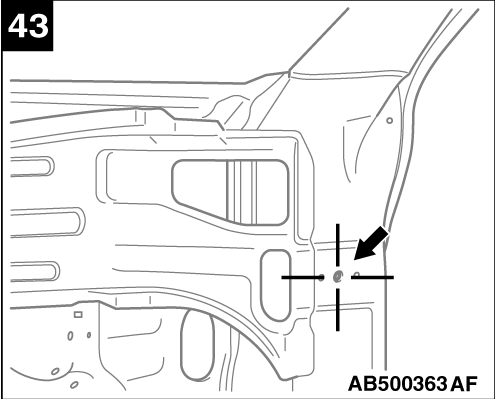

Centre of front door hinge mounting hole (upper) |
Round |
11 |
| 44 |
Centre of front door hinge mounting hole (lower) |
Round |
11 |
| 45 |
Centre of front door switch mounting hole |
Round |
5 |
