No.
|
Standard measurement point
|
Hole shape
|
Size mm
|

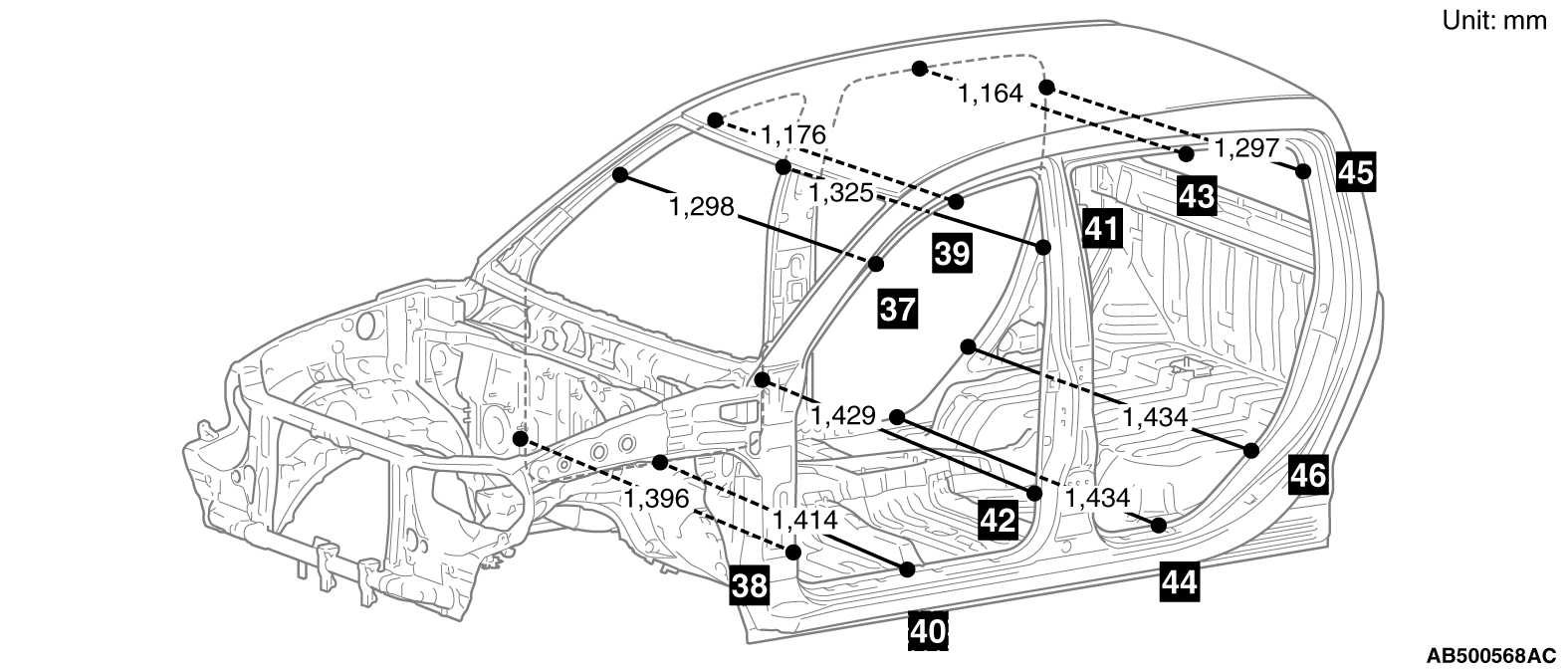

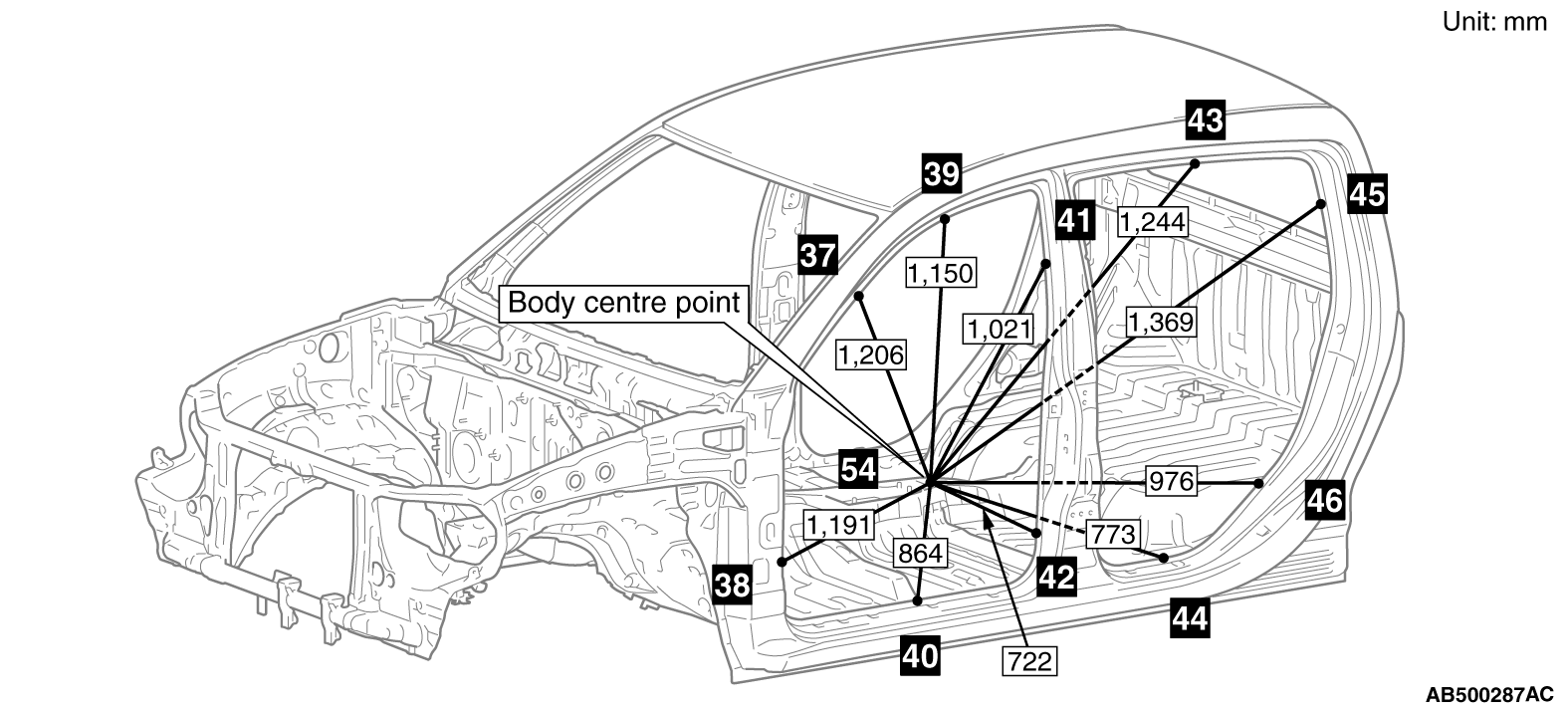

37
|
Front pillar positioning notch (upper)
|
-
|
-
|
38
|
Front pillar positioning notch (lower)
|
-
|
-
|
39
|
Side roof rail positioning notch (front)
|
-
|
-
|
40
|
Side sill positioning notch (front)
|
-
|
-
|
41
|
Centre pillar positioning notch (upper)
|
-
|
-
|
42
|
Centre pillar positioning notch (lower)
|
-
|
-
|
43
|
Side roof rail positioning notch (rear)
|
-
|
-
|
44
|
Side sill positioning notch (rear)
|
-
|
-
|
45
|
Quarter panel positioning notch (upper)
|
-
|
-
|
46
|
Quarter panel positioning notch (lower)
|
-
|
-
|

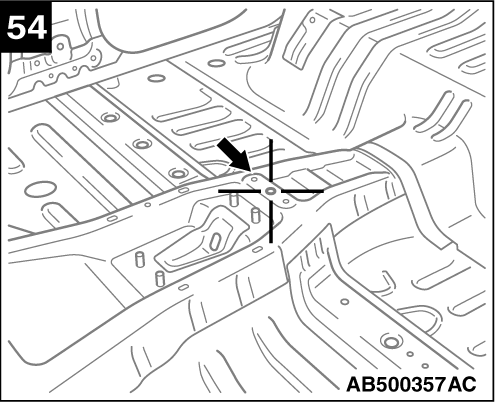

54
|
Centre of backbone reinforcement positioning hole (Body centre point)
|
Round
|
5
|
No.
|
Standard measurement point
|
Hole shape
|
Size mm
|

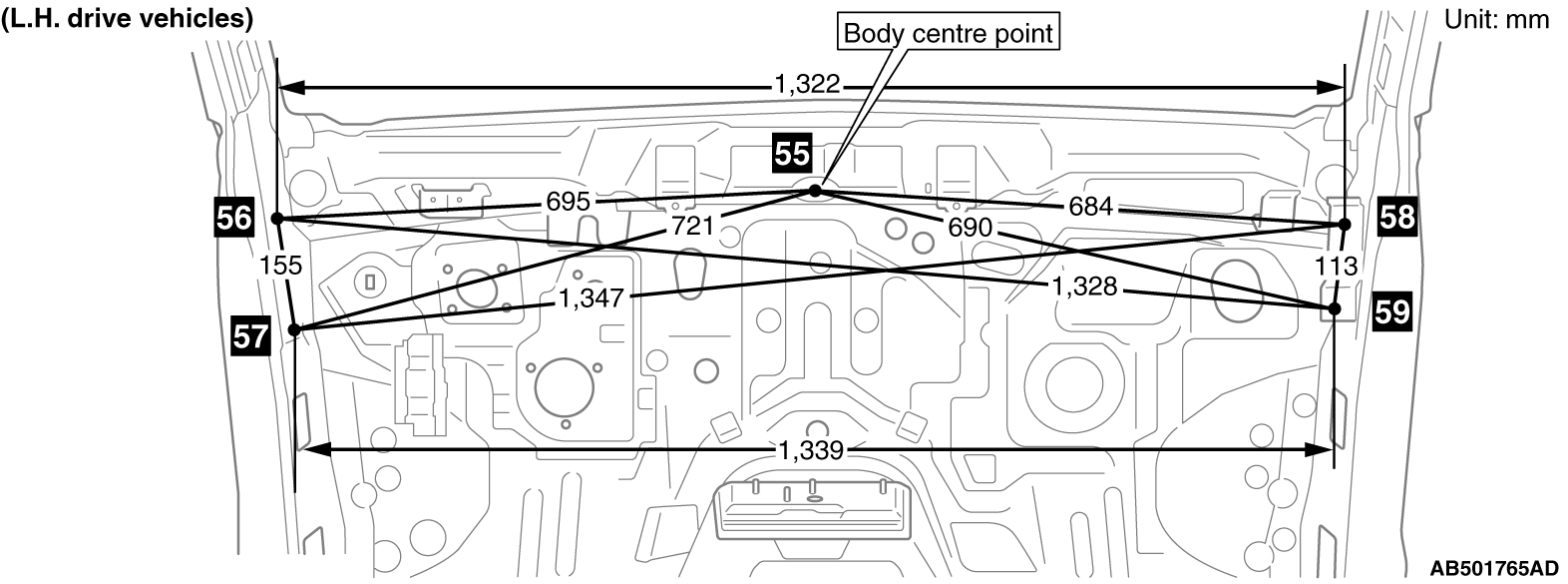

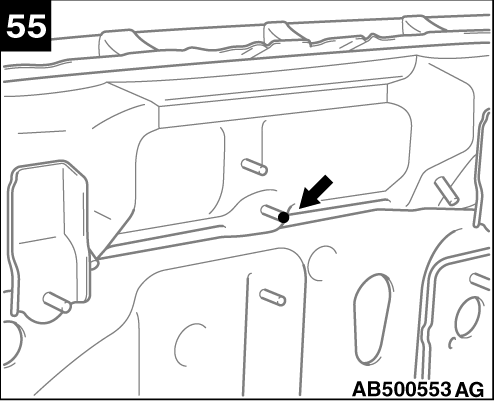

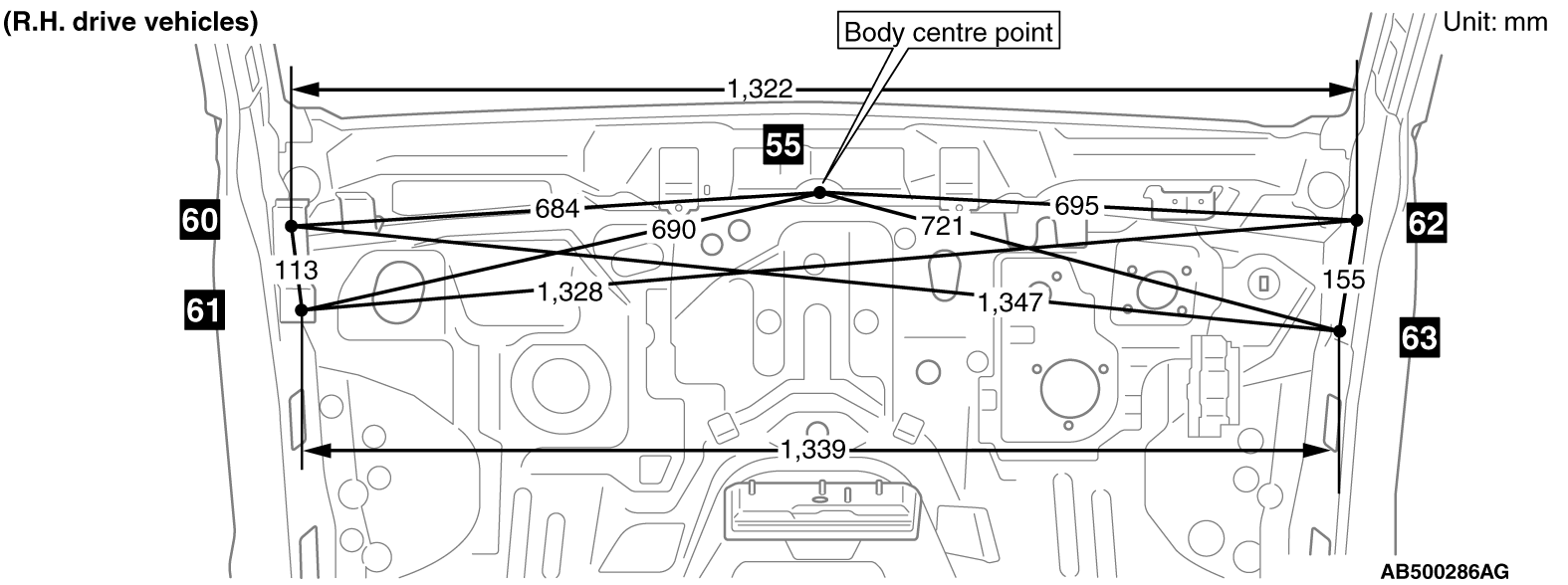

55
|
Tip of harness mounting stud centre (Body centre point)
|
-
|
-
|

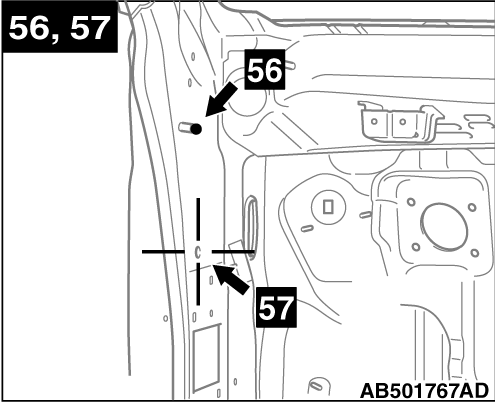

56
|
Tip of deck crossmember mounting bolt (left-upper)
|
-
|
-
|
57
|
Centre of deck crossmember mounting hole (left-lower)
|
Round
|
11
|

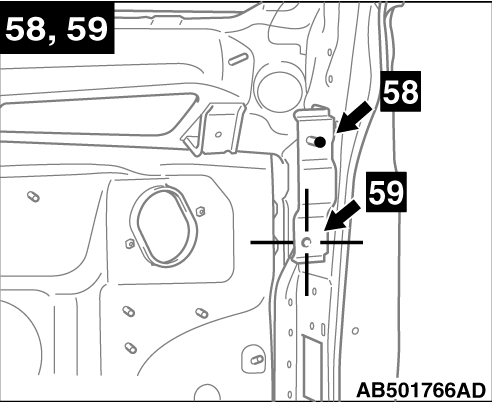

58
|
Tip of deck crossmember mounting bolt (right-upper)
|
-
|
-
|
59
|
Centre of deck crossmember mounting hole (right-lower)
|
Round
|
9
|

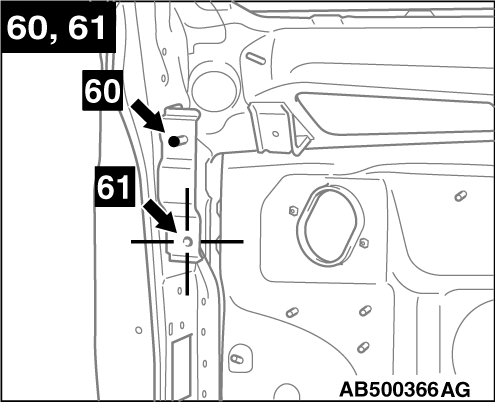

60
|
Tip of deck crossmember mounting bolt (left-upper)
|
-
|
-
|
61
|
Centre of deck crossmember mounting hole (left-lower)
|
Round
|
9
|

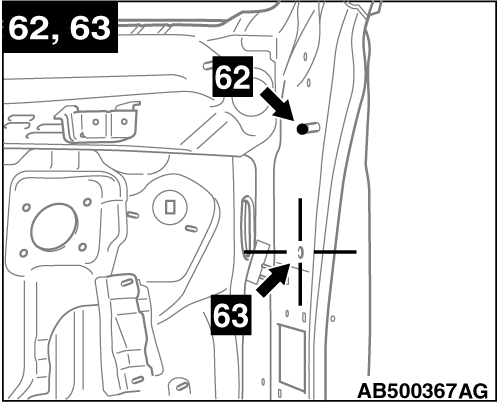

62
|
Tip of deck crossmember mounting bolt (right-upper)
|
-
|
-
|
63
|
Centre of deck crossmember mounting hole (right-lower)
|
Round
|
11
|
